Radio button

Use radio buttons when you have a group of mutually exclusive choices and only one selection from the group is allowed.

Live demo


    This live demo contains only a preview of functionality and styles available for this component. View the full demo on Storybook for additional information such as its version, controls, and API documentation.

    Accessibility testing status

    For every latest release, Carbon runs tests on all components to meet the accessibility requirements. These different statuses report the work that Carbon has done in the back end. These tests appear only when the components are stable.

    Overview

    Radio buttons are used for mutually exclusive choices, not for multiple choices. Only one radio button can be selected at a time. When a user chooses a new item, the previous choice is automatically deselected.

    When to use

    Form

    Can be used in tiles, data tables, modals, side panels, and in forms on full pages.

    Settings

    Used to change from one setting to another in a menu, page, or component. It can often act as a filtering mechanism.

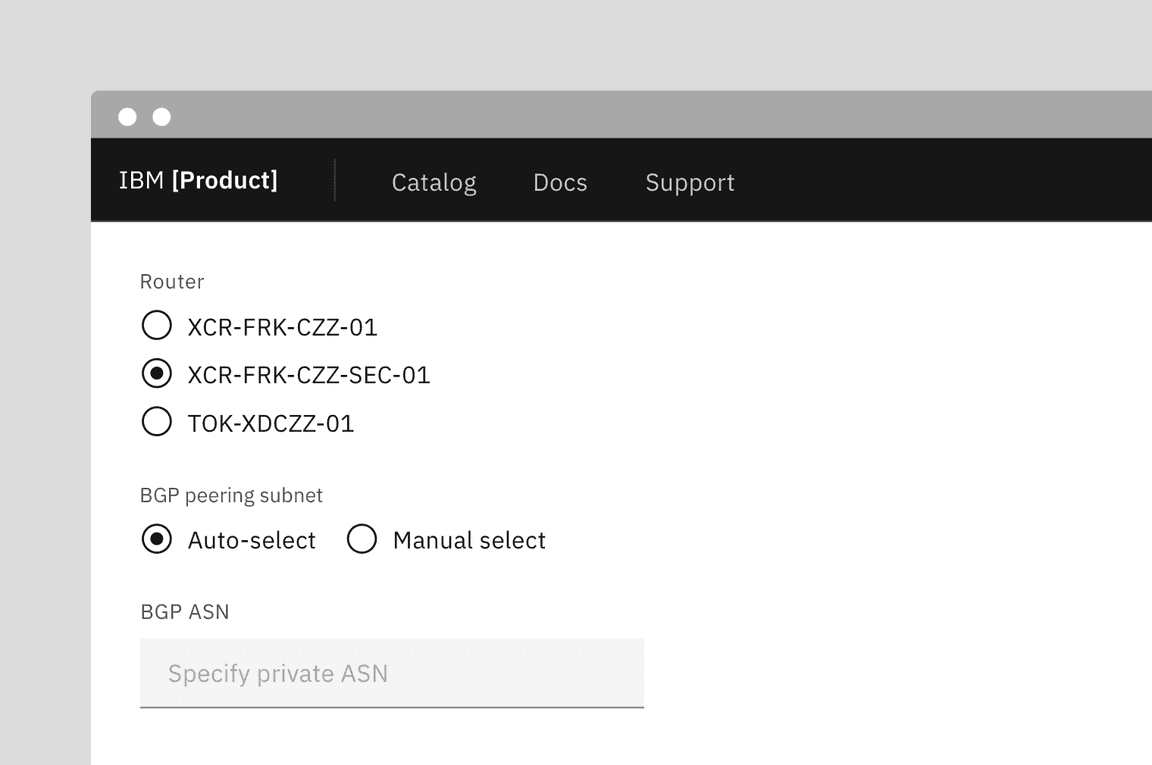

    Example of radio buttons in a form

    When not to use

    If a user can select from multiple options, use checkboxes instead of radio buttons. Radio buttons allow the user to select only one item in a set whereas checkboxes allow the user to select multiple items.

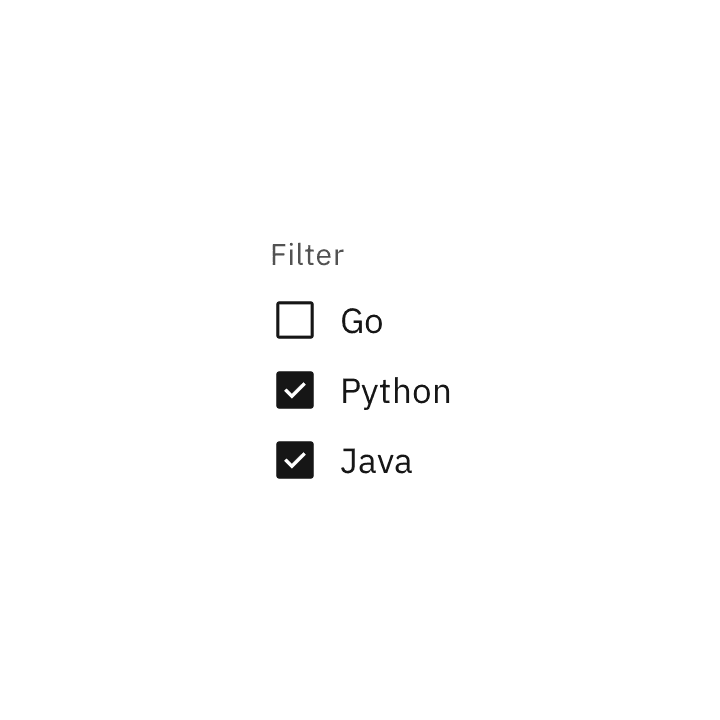

    Do use checkboxes when multiple items can be selected.

    Do use checkboxes when multiple items can be selected.

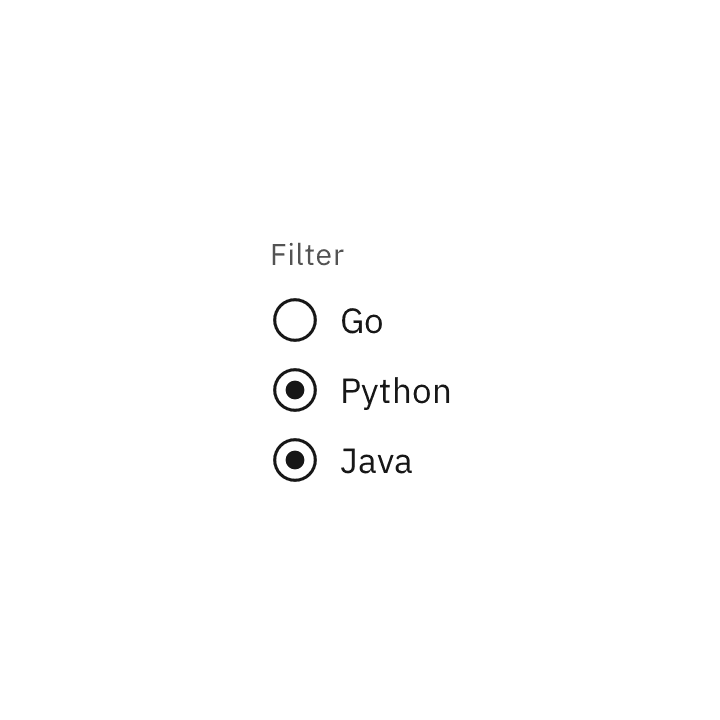

    Don't use radio buttons when multiple items can be selected.

    Don't use radio buttons when multiple items can be selected.

    Formatting

    Anatomy

    The radio button component is comprised of a set of clickable circles (the inputs) with text labels positioned to the right. If there is a group of radio buttons, a group label can be added.

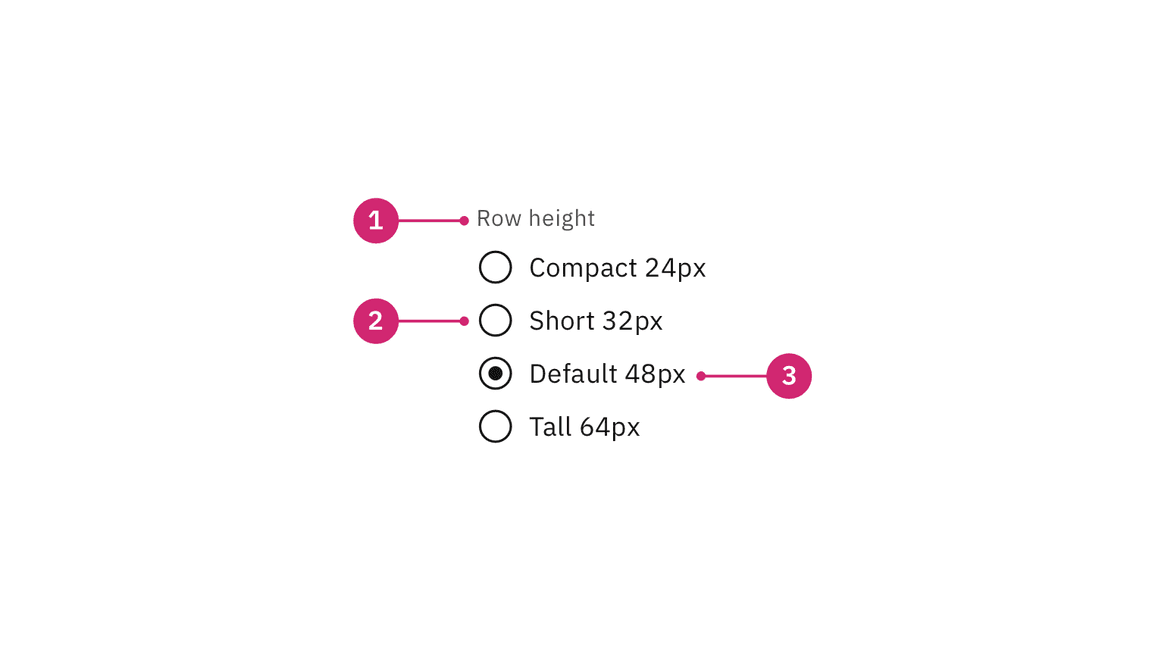

    Anatomy of radio buttons
    1. Group label (optional): Describes the group of options or provides guidance for making a selection.
    2. Radio button input: Indicates the state of a radio button. By default, no option will be preselected.
    3. Radio button label: Describes the information you want to select or unselect.

    Alignment

    Radio button labels are positioned to the right of their inputs in languages that read left to right. If there is a radio button grouping, they can be laid out vertically or horizontally depending on the use case and the structure of the UI. When possible, arrange the radio button and checkbox groups vertically for easier reading.

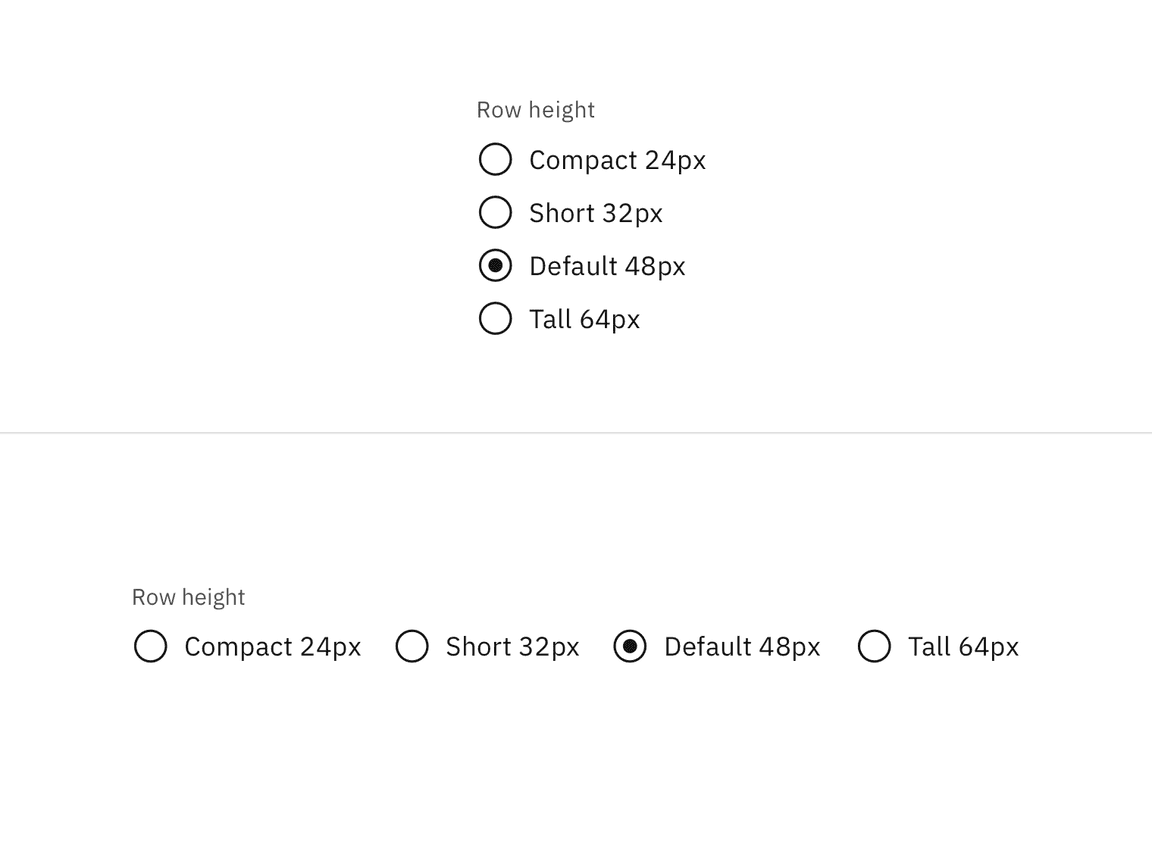

    Vertically stacked versus horizontal alignment

    Vertically stacked versus horizontal alignment

    For languages that read right to left, it’s acceptable to place labels to the left of the inputs.

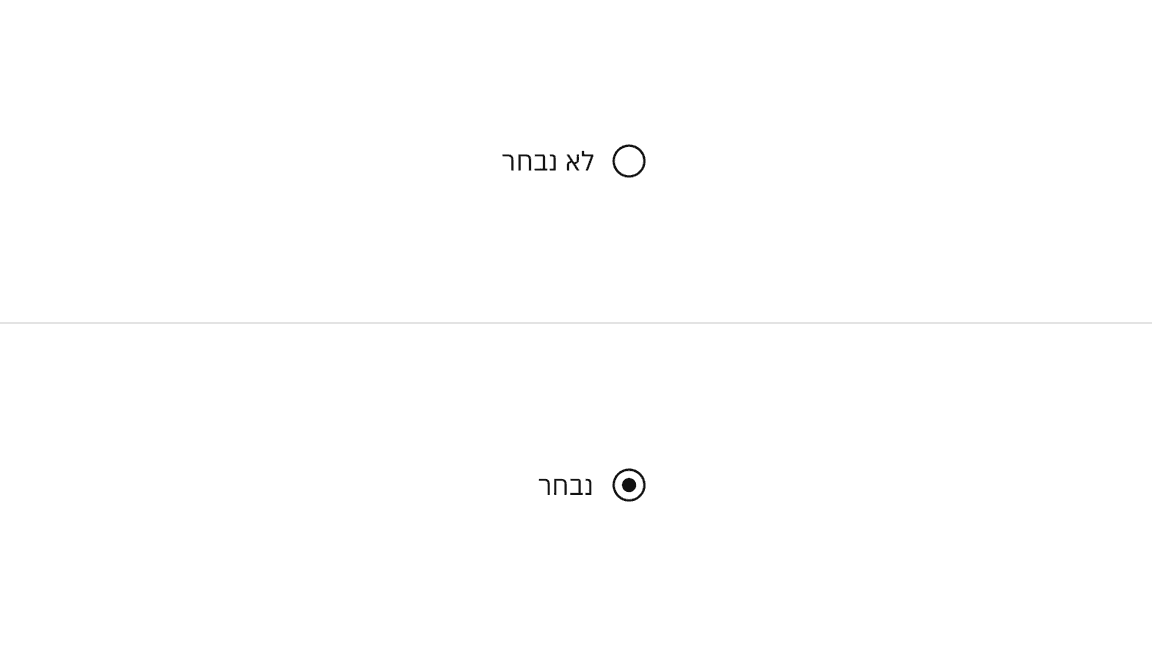

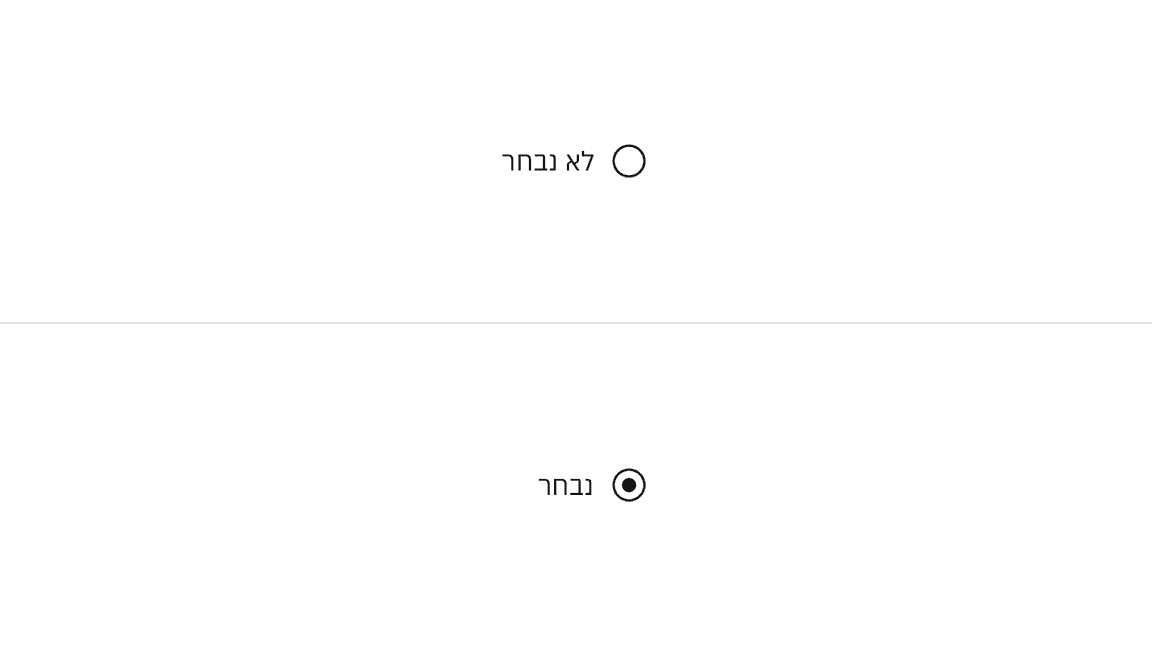

    Example of radio buttons for languages that read right to left instead of left to right

    Example of radio buttons for languages that read right to left instead of left to right

    Placement

    The radio button component is often used in forms. Forms can be placed on a full page, in a modal, or in a side panel. A radio button can also be used for changing settings in a menu or selecting a singular item in a data table.

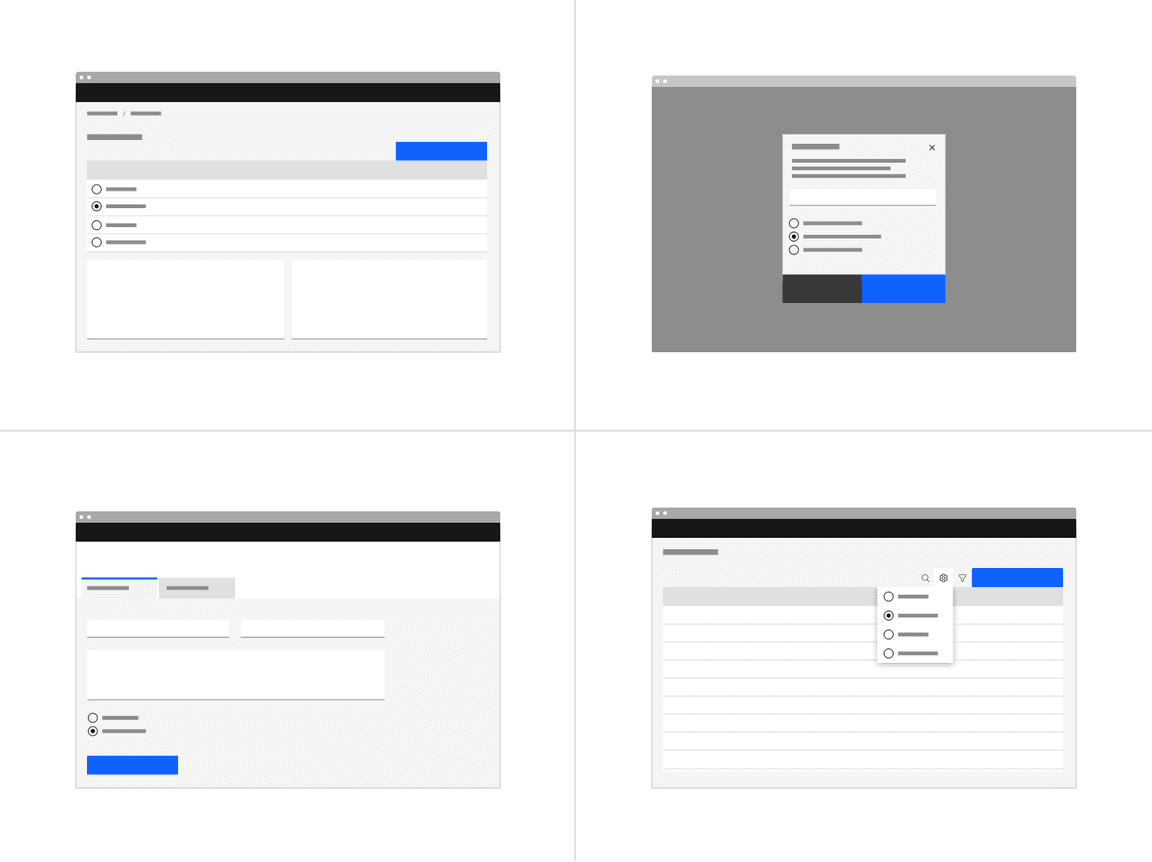

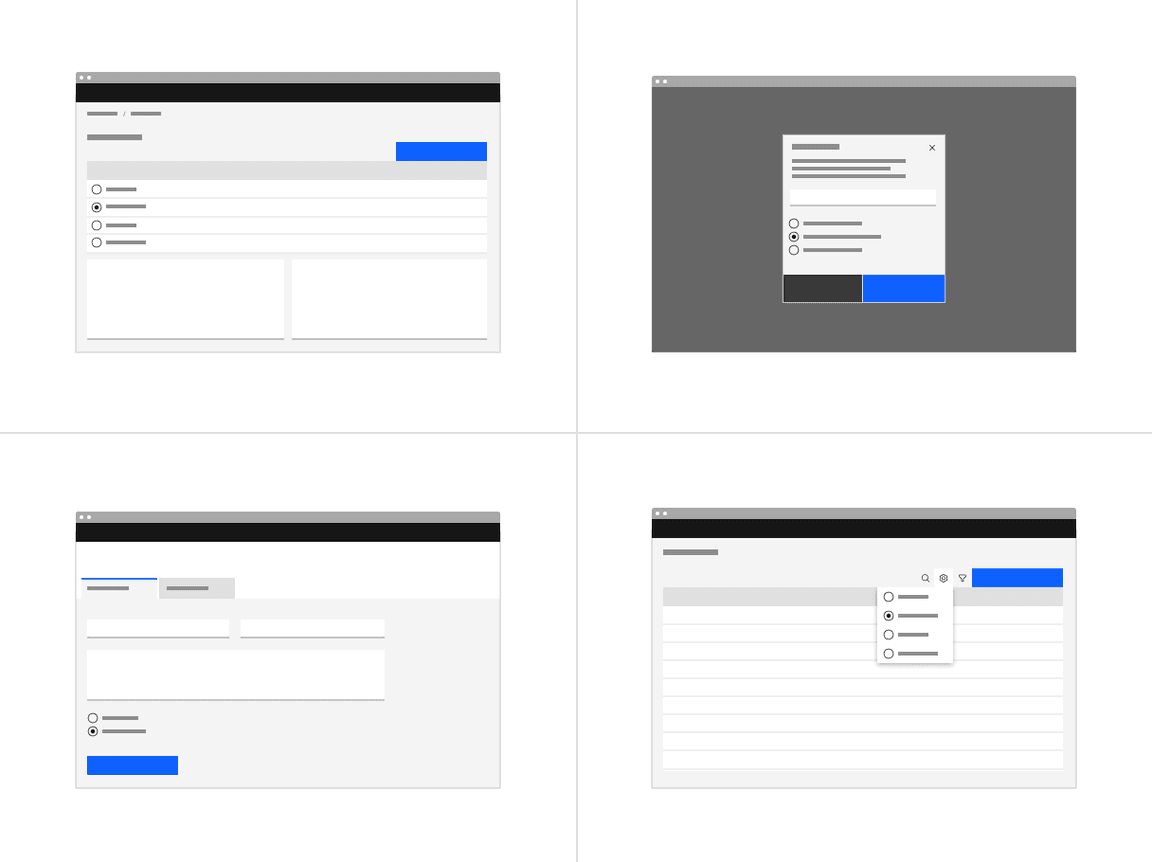

    Placement of radio buttons

    Radio buttons in a form should be placed at least 32px (layout-03) below or before the next component. Spacing of 24px (layout-02) or 16px (layout-01) can also be used when space is more restricted or if the form is more complex.

    For more information on spacing in forms, see our form style guidance.

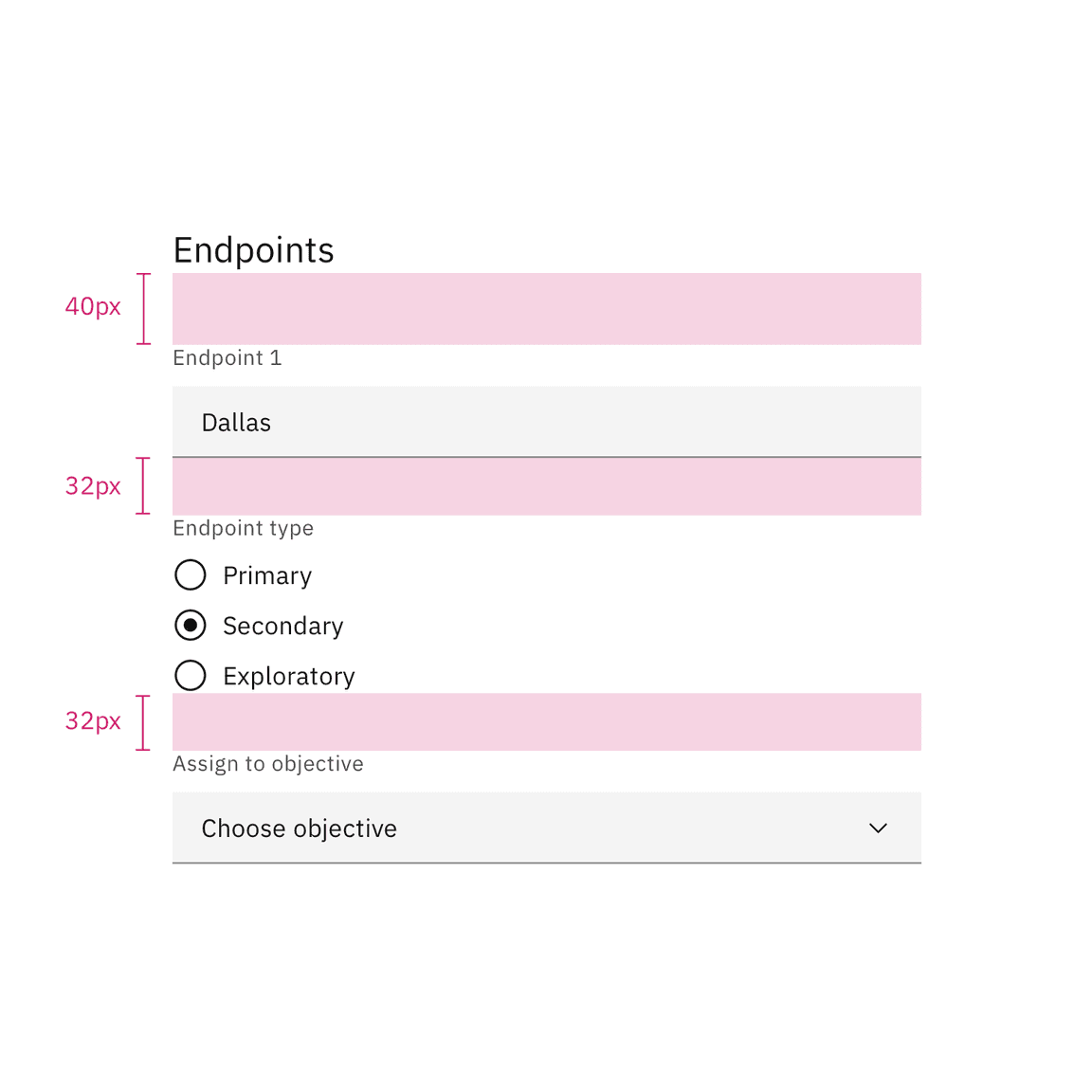

    Spacing between a radio button and other components in a form

    Spacing between a radio button and other components in a form

    Content

    Main elements

    Group labels (optional)

    A heading can accompany a set of radio buttons to provide further context or clarity. In some cases, a group of radio buttons may be within a larger group of components that already have a group label. In this case, an additional group label for the radio button component itself is not needed.

    • A group label can either state the category of the grouping or consicely instruct what actions to take below depending on the context.
    • Use sentence case for group labels.

    Radio button labels

    • Always use clear and concise labels for radio buttons.
    • Labels appear to the right of radio button inputs.

    Overflow content

    • We recommend radio button labels being fewer than three words.
    • If you are tight on space, consider rewording the label. Do not truncate radio button label text with an ellipsis.
    • Long labels may wrap to a second line, and this is preferable to truncation.
    • Text should wrap beneath the radio button so the control and label are top aligned.
    Spacing between a radio button and other components in a form

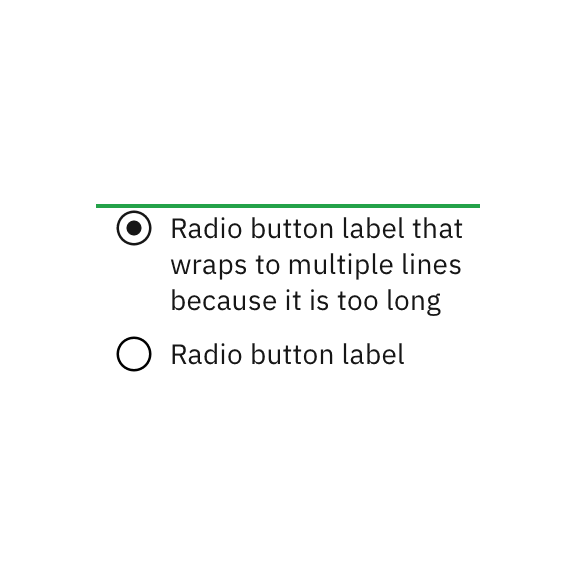

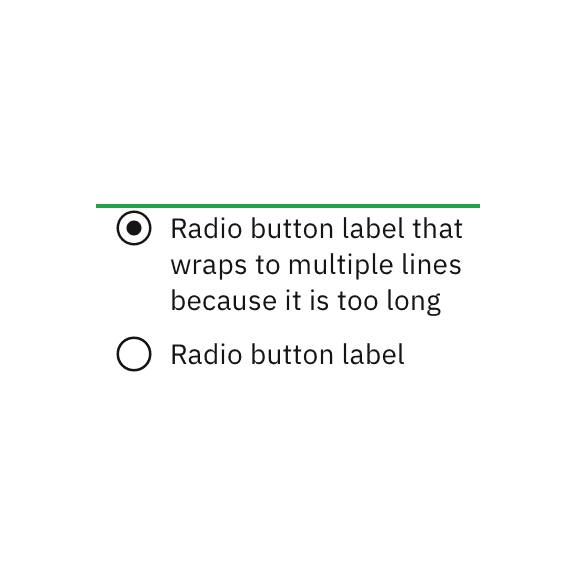

    Do let text wrap beneath the radio button so the control and label are top aligned.

    Do let text wrap beneath the radio button so the control and label are top aligned.

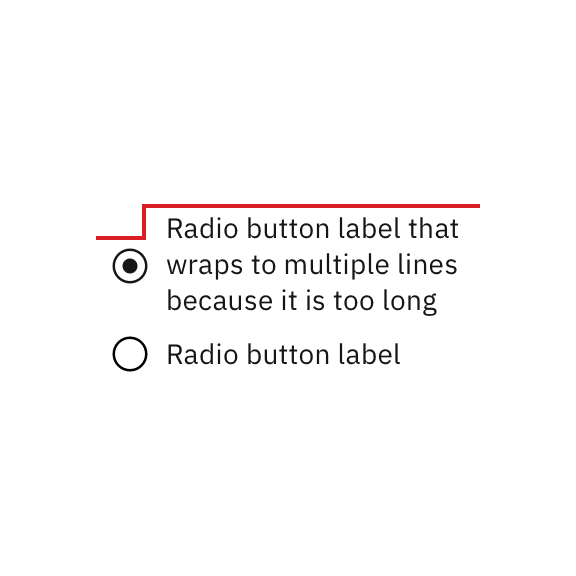

    Do not vertically center wrapped text with the radio button.

    Do not vertically center wrapped text with the radio button.

    Further guidance

    For further content guidance, see Carbon’s content guidelines.

    Behaviors

    States

    The radio button input allows for two states: unselected and selected. The default view of a radio button is having no radio button preselected. Only one radio button should be selected at a time. When a user chooses a new item, the previous choice is automatically deselected. If the user has already selected an item but wants to deselect it, consider adding alternatives such as an “other” or “none” option.

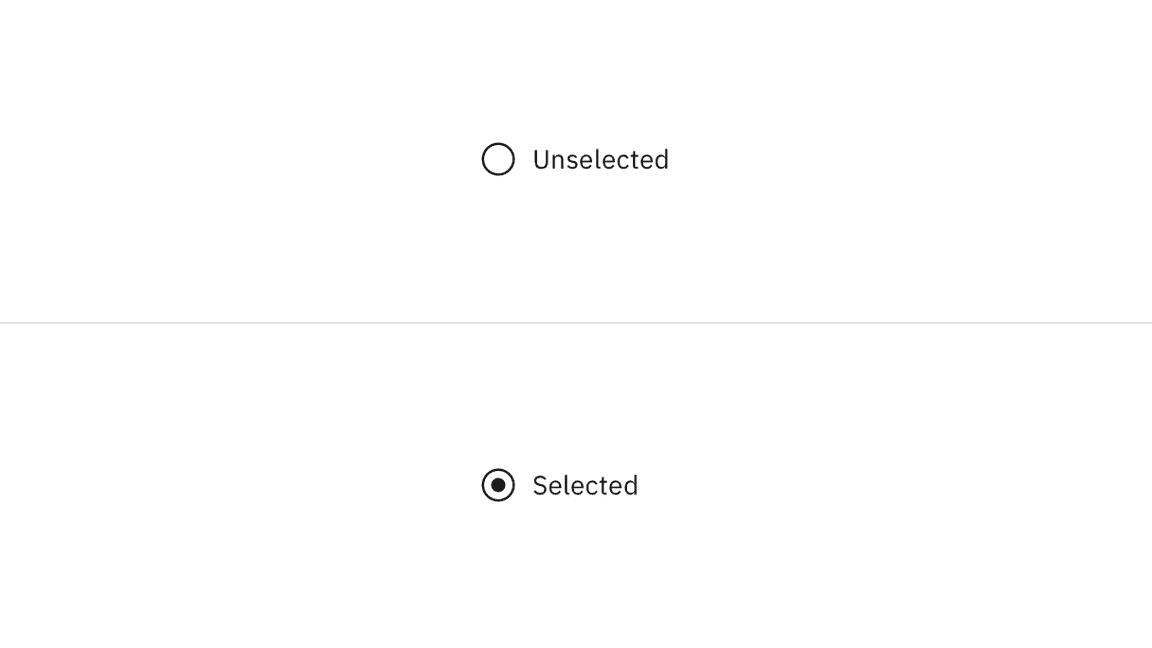

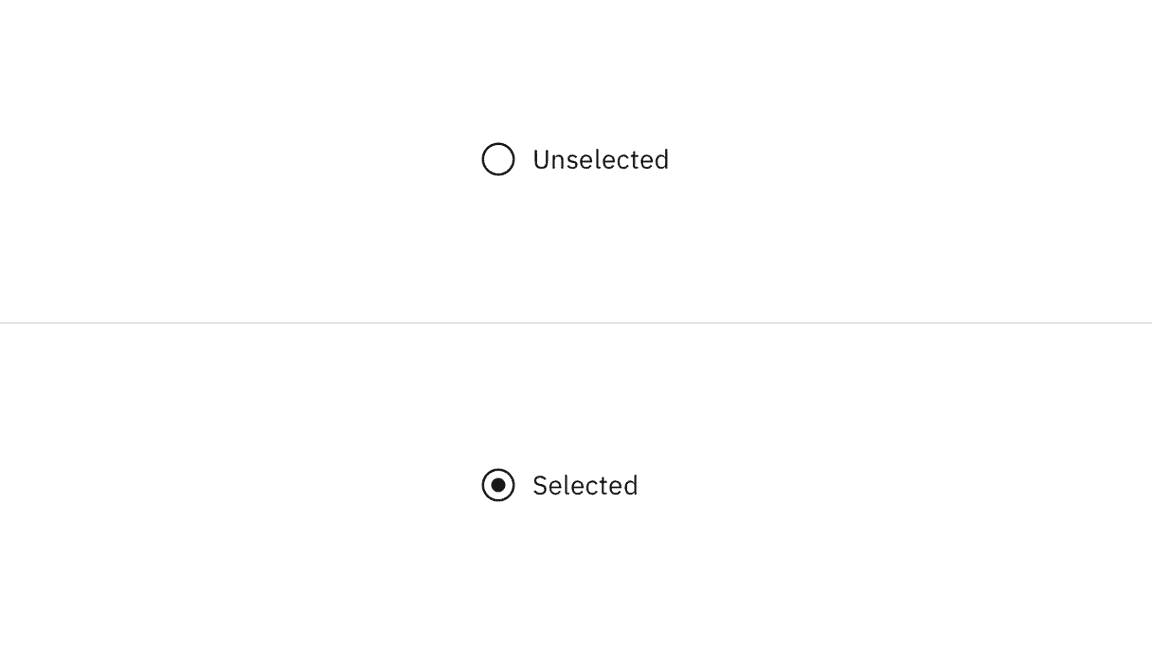

    Examples of unselected and selected radio buttons

    In addition to unselected and selected states, radio buttons also have states for focus, disabled, read-only, error, and warning. When deciding whether to use a disabled or read-only state for radio buttons, see our Read-only states pattern guidance.

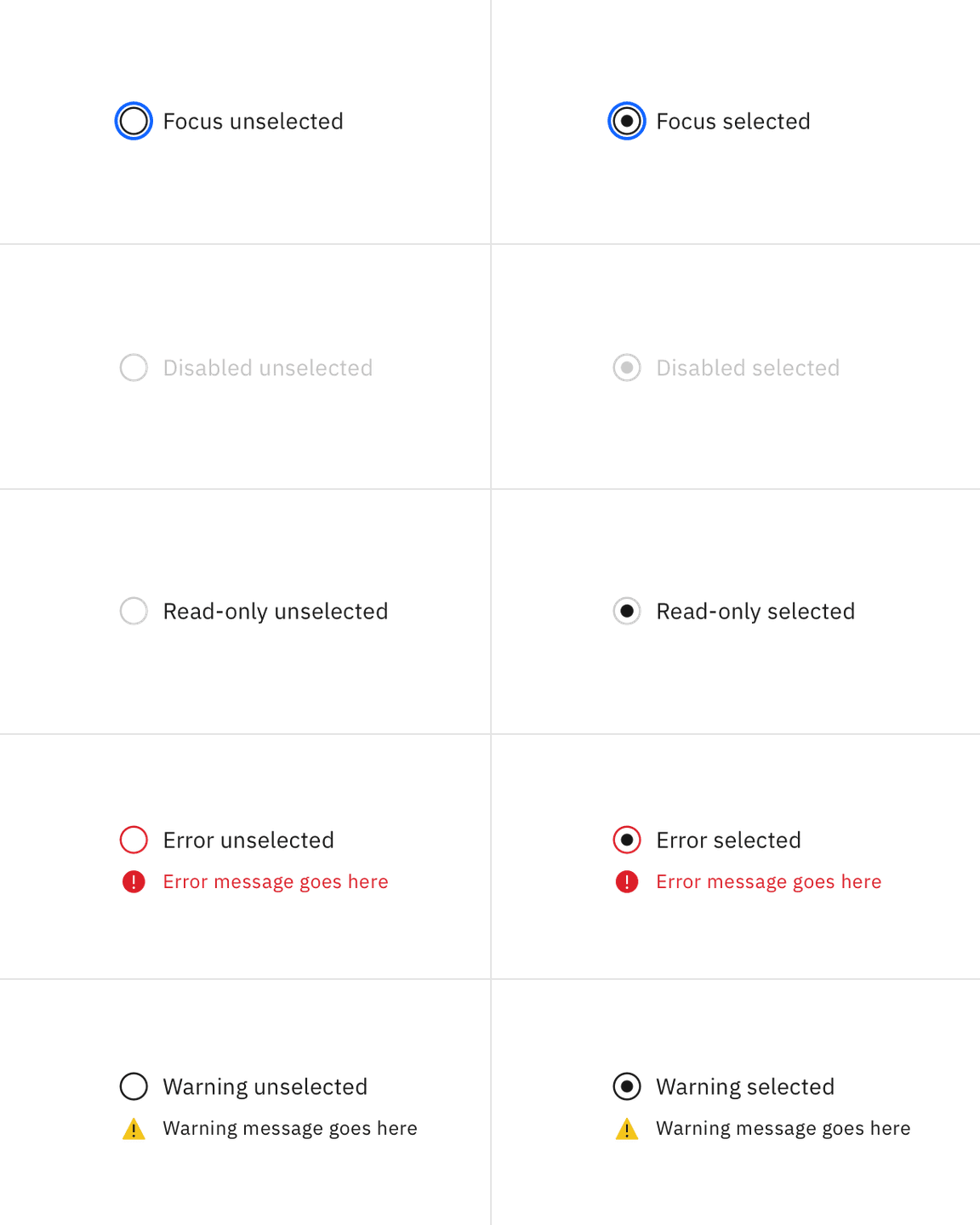

    Examples of focus, disabled, read-only, error, and warning states

    Group states

    Radio button groups can receive the following states: read-only, disabled, error, and warning, as well as the addition of helper text.

    Examples of focus, disabled, read-only, error, and warning states

    Interactions

    Mouse

    Users can trigger an item by clicking the radio button input directly or by clicking the radio button label. Having both regions interactive creates a more accessible click target.

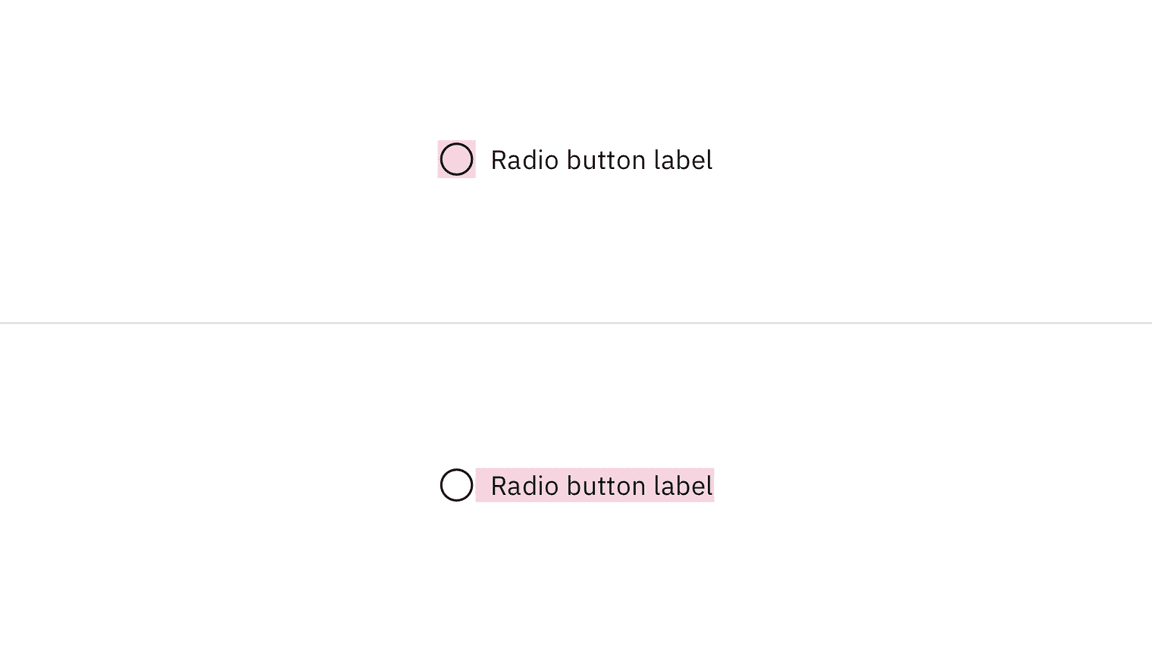

    Click targets for radio buttons

    Keyboard

    By default, no option will be preselected. Users can navigate between radio button inputs by pressing Up or Down arrow keys. If a user lands on a radio button set without a default indicator, they can press Space to select the radio button or they can press an arrow key to select the next radio button. For additional keyboard interactions, see the accessibility tab.

    Radio buttons versus checkboxes

    Radio buttons allow users to select one option from a group of mutually exclusive choices, while checkboxes allow for a selection of one of more options from a group. In the use cases where multiple selections are allowed, use the checkbox component instead of the radio button.

    Radio button verses selectable tile

    Radio buttons should have concise, easy to compare options. If more information is required to make a choice, like pricing plans or additional links, consider using a selectable tile.

    Radio button verses toggle switch

    Toggle switches are preferred when the user options are limited to two choices—on and off or true and false. By comparison, radio buttons, radio buttons can have many other options.

    Structured list

    If a user needs to choose a singular item from a list that has simple data and multiple columns, a selectable structured list can be used.

    Tables

    See the data table component for guidance on how to use radio buttons within a table.

    References

    Jakob Nielson, Checkboxes vs. Radio Buttons (Nielsen Norman Group, 2004)

    Kara Pernice, Radio Buttons: Select One by Default or Leave All Unselected? (Nielsen Norman Group, 2014)
