Data table

Data tables are used to organize and display data efficiently. The data table component allows for customization with additional functionality, as needed by your product’s users.

Live demo



      This live demo contains only a preview of functionality and styles available for this component. View the full demo on Storybook for additional information such as its version, controls, and API documentation.

      Accessibility testing status

      For every latest release, Carbon runs tests on all components to meet the accessibility requirements. These different statuses report the work that Carbon has done in the back end. These tests appear only when the components are stable.

      Overview

      The data table’s features are ideal for organizing and displaying data in a UI. The column headers can sort data in ascending or descending order, rows can be expanded to progressively disclose information, and single or batch actions can be taken on rows.

      The data table toolbar gives a location for primary buttons, search, filtering, table display settings, and other utilities.

      When to use

      • To organize and display data.
      • If your user must navigate to a specific piece of data to complete a task.
      • Displaying all of a user’s resources.

      When not to use

      • When a more complex display of the data or interactions are required.
      • As a replacement for a spreadsheet application.

      Data table variants

      VariantPurpose
      DefaultThe basic data table has only the header and table element rows. It is available in five row sizes.
      With selectionThe selection variant enables users to select individual rows in a data table. Selection options include a single-select radio button option and a multi-select checkbox option. Users can perform a single action or batch actions against selected items.
      With expansionThe expandable variant helps present large amounts of data in a small space. Users can expand and collapse row panels to reveal and hide additional information.

      Formatting

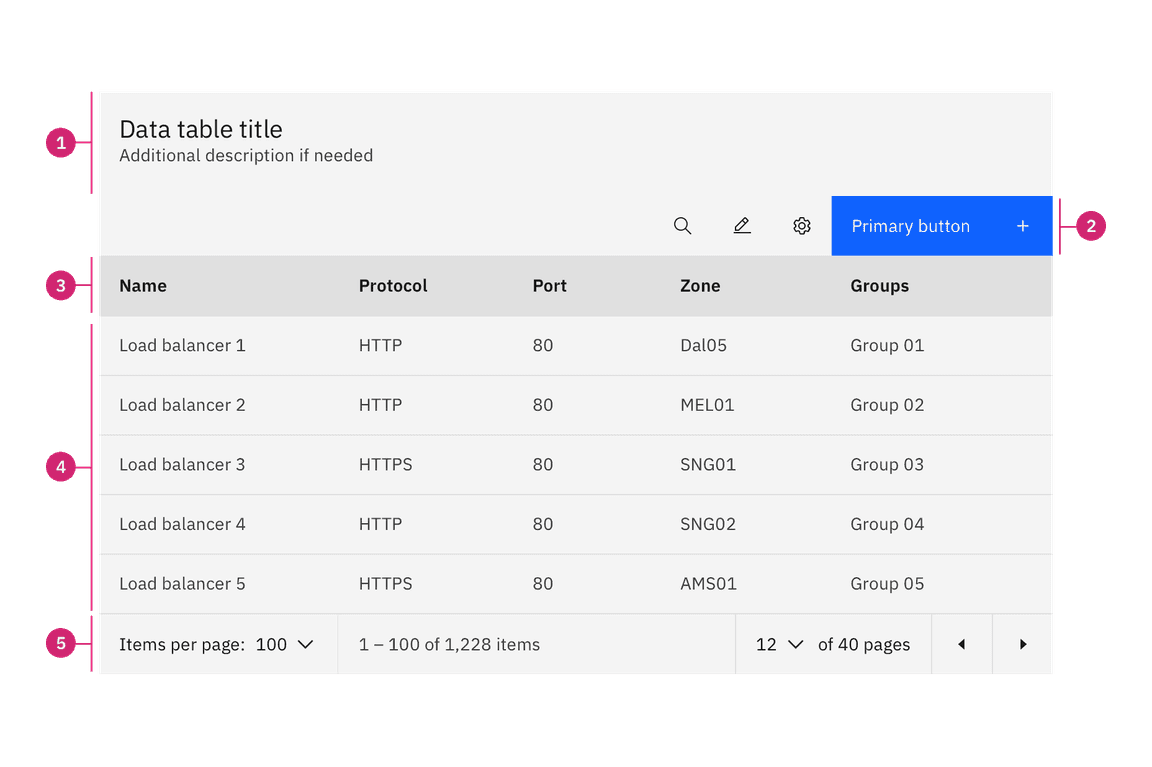

      Anatomy

      data table anatomy
      1. Title and description: contains the data table title and an optional description.
      2. Toolbar: global data table controls including search and table settings.
      3. Column header: title for the row header with the optional sorting behavior.
      4. Table row: can be configured to show different types of data. Rows can be selectable, expandable, and modified to show alternating zebra stripe background colors.
      5. Pagination table bar: an optional component that lets a user navigate data as pages when the amount of data it too large to be shown at once.

      Sizing

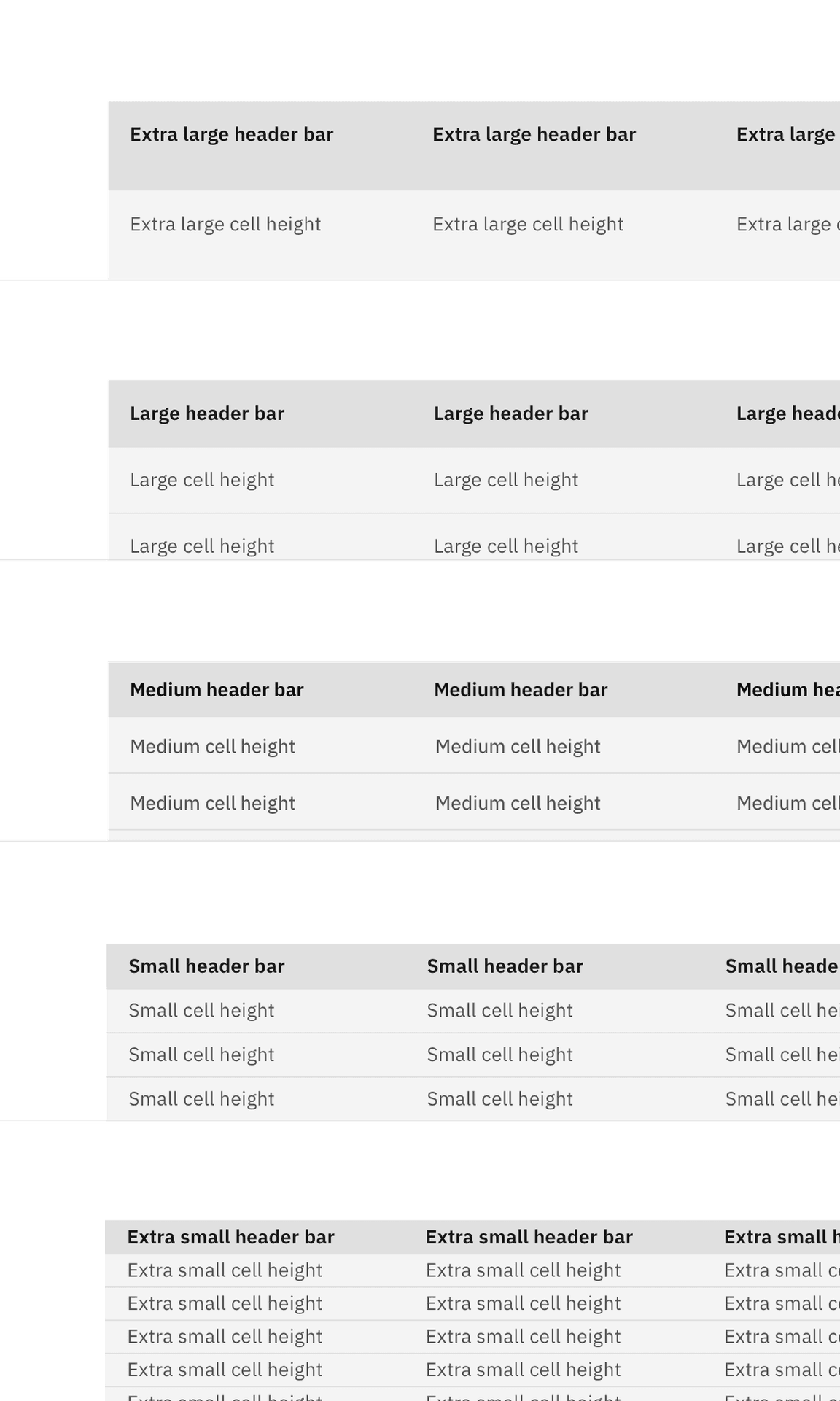

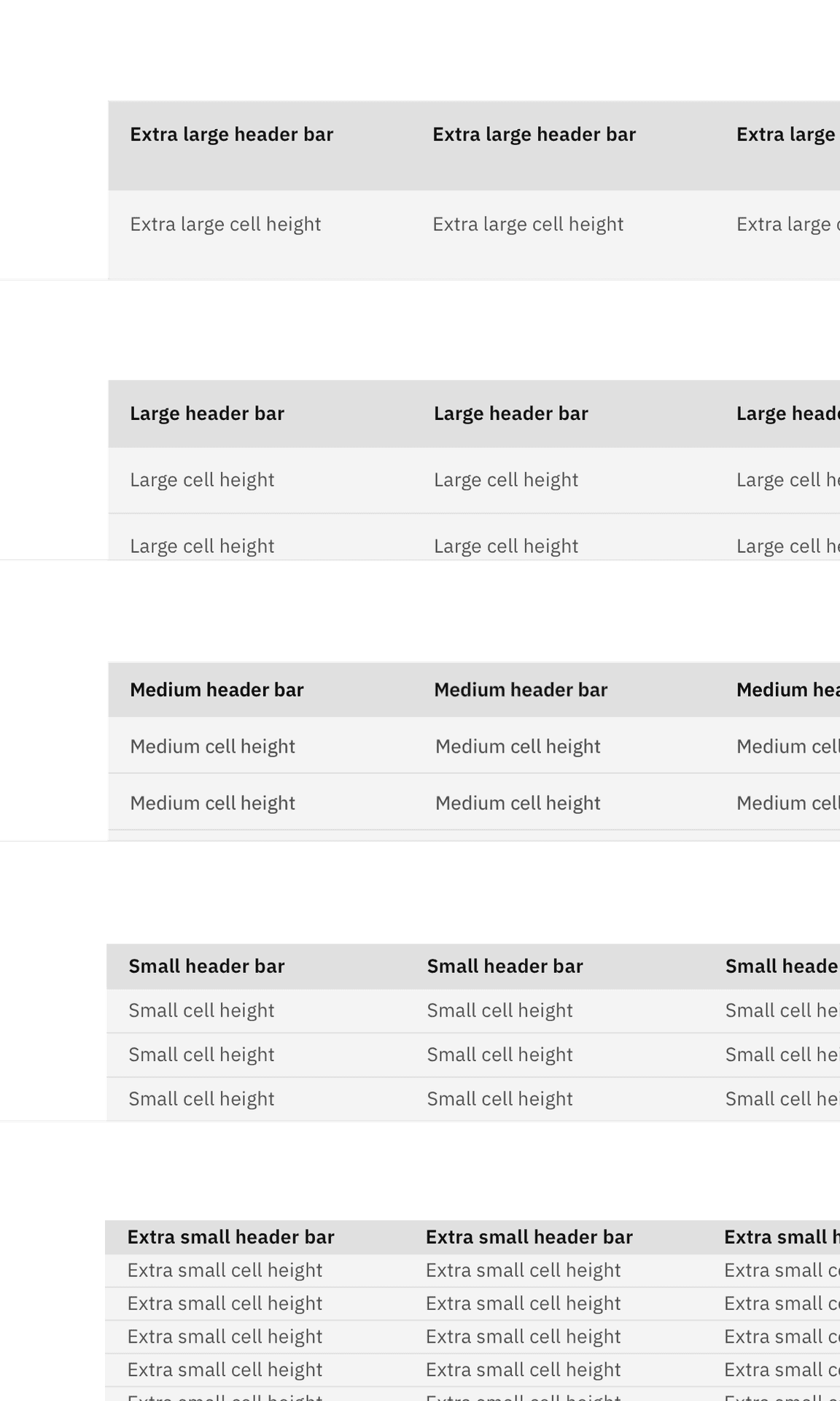

      The data table is available in five different row sizes: extra large, large, medium, small, extra small.

      data table size

      The column header row .cds--data-table thead should always match the row size of the table. Extra large row heights are only recommended if your data is expected to have 2 lines of content in a single row.

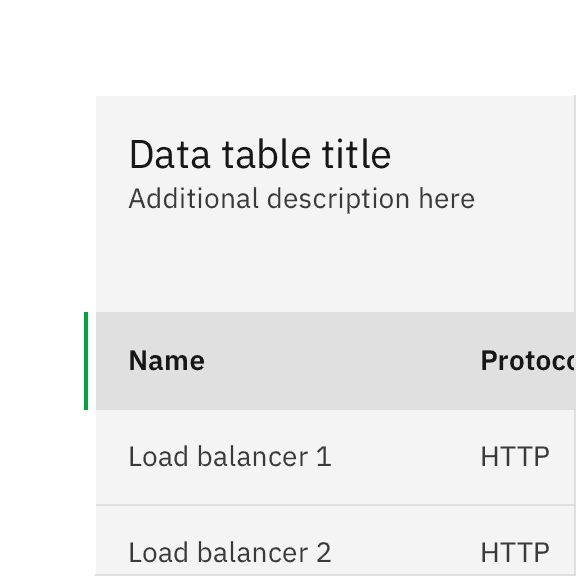

      Do: Do use the same row height for the table and header rows.

      Do use the same row height for the table and header rows.

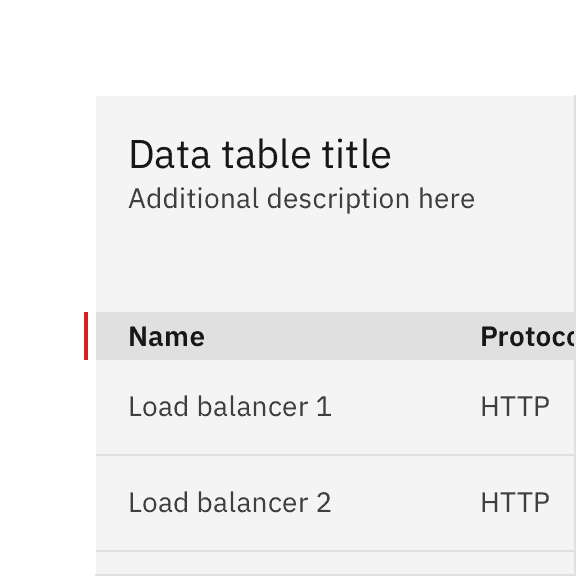

      Don’t: mix row heights for the table and header rows.

      Don’t mix row heights for the table and header rows.

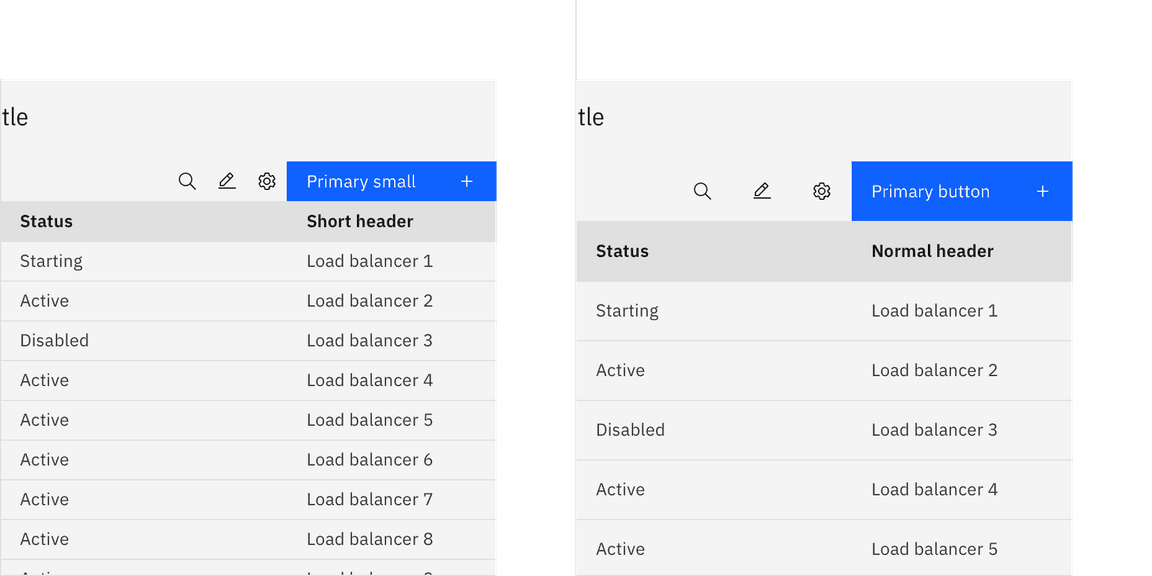

      Two heights are available to be paired with the row heights of the data table. The tall toolbar should only be paired with the large and extra large row heights and the small toolbar should only be used with the small and extra small row heights.

      data table toolbar size

      A small toolbar on a short data table and a tall toolbar on a normal data table

      Placement

      Data tables should be placed in a page’s main content area and given plenty of space to display data without truncation. Avoid placing data tables inside modals or smaller containers where the information can feel cramped or needs truncation.

      The data table can be placed on the grid following the three different gutter modes outlined in the 2x grid guidelines. Although, the data table can share horizontal space with other components and content, consider giving your data table the most width on the page to help your user view dense data.

      These three examples show the data table on the wide (default), narrow, and condensed gutter modes. Note the different type alignments and gutter sizes.

      Wide gutter mode

      The wide gutter mode is the default and gives the most breathing room between the data table and the other components or content.

      data table wide

      Data table on a wide (default) grid

      Narrow gutter mode

      Using the data table on a narrow grid will hang the component into the gutter and create a desirable type alignment between the the data table’s title and other type on the page.

      data table narrow

      Data table on a narrow grid

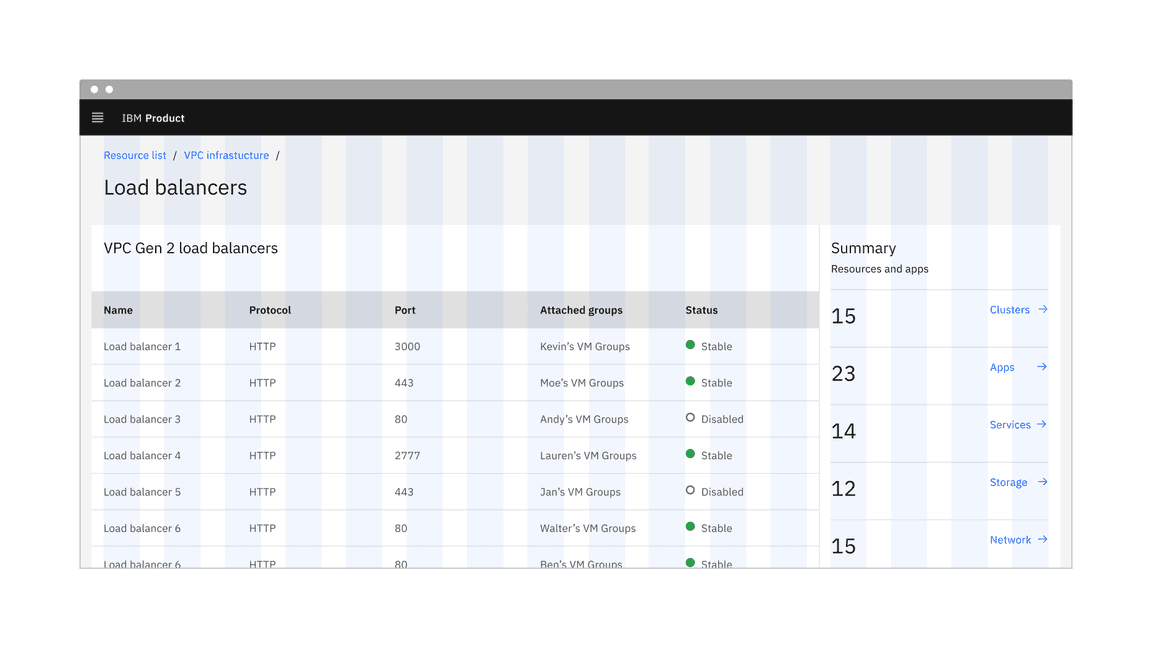

      Condensed gutter mode

      The data table can be used on a condensed grid, but care should be taken to avoid any unintentional relationships with other UI elements. Use a hybrid grid or a dissimilar background color to avoid the components blending in to each other.

      data table condensed

      Data table on a condensed grid

      Content

      Main elements

      Data table title and description

      • The table title should make it clear to the user what this the data has in common and what purpose it serves in the UI.
      • A description can be added under the title to provide more information about the data or its source.
      • A data table’s title and description should use sentence-case capitalization.

      Column titles

      • Column titles should stick to one or two words that describe the data in that column.
      • In cases where a column title is too long, wrap the text to two lines and then truncate the rest of the text. The full text should be shown in a tooltip on hover.
      • Column titles should use sentence-case capitalization.

      Primary button

      For further content guidance, see Carbon’s content guidelines.

      Variants

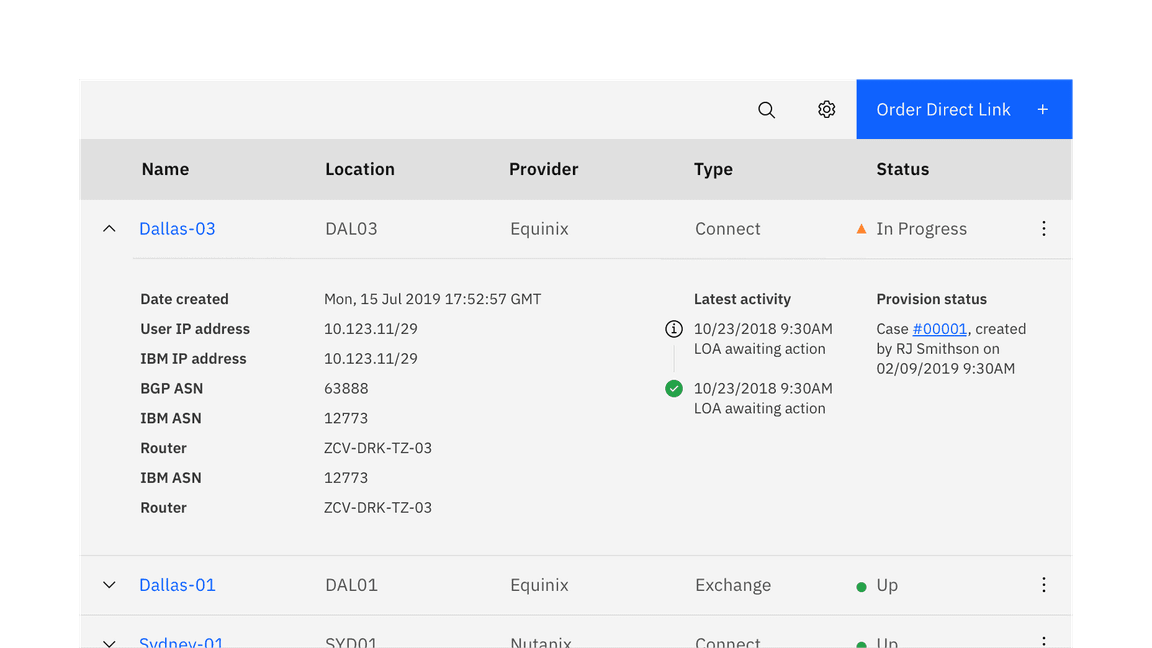

      Expandable

      The expandable data table helps present large amounts of data in a small space. Use the expanded section for supplementary information or data that needs additional query time. When the content in the expanded area feels cramped, consider taking the user to a dedicated page, side panel, or modal to view the information and complete tasks.

      Example of data table with row expansion

      Batch expansion

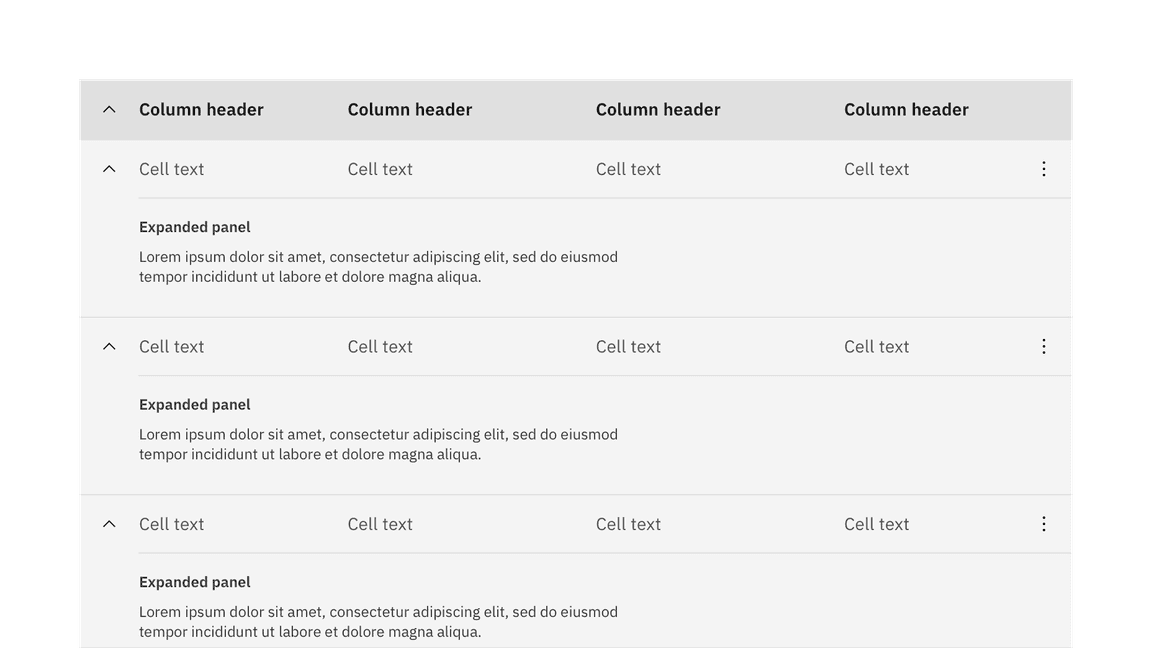

      When appropriate, a batch expansion feature can be added to the table column header to allow the user to open all collapsed sections simultaneously. However, the expand-all chevron is not shown by default in the expandable data table variant. Keeping detailed information in the expanded section saves user loading time by postponing some data queries until needed. Expanding all rows at once will typically negate this advantage of the expandable table.

      Example of data table with batch expansion

      Selectable

      By default, the selectable variant allows users to select more than one row in a data table simultaneously. To select a row, the user must select the checkbox associated with the row. The user can select all rows at once by selecting the checkbox in the column header. Checkboxes in the rows have only two states, checked and unchecked. However, the check all checkbox in the column header has three states, check, unchecked, and indeterminate.

      Actions applied to the chosen selected items are found in the default table toolbar or batch action mode.

      Example of a data table with selection

      Radio selection

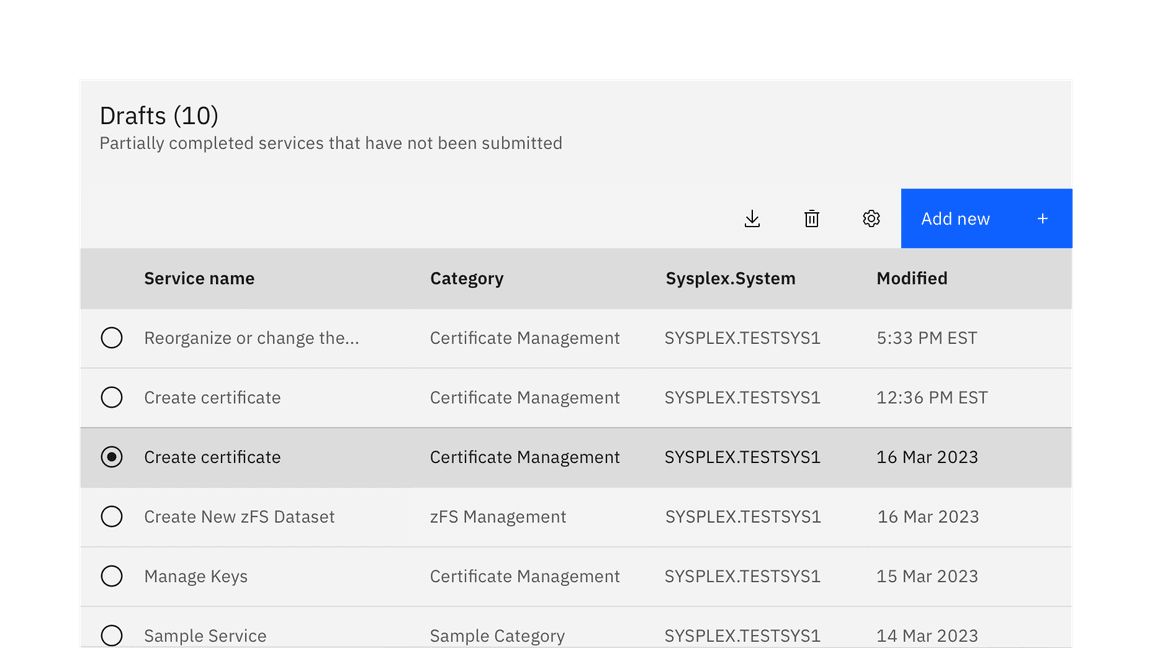

      The data table also supports a single-select radio button control, limiting the user to selecting only one row at a time. The radio button is placed in the first column on the left side. Single actions applied to the chosen radio item are often placed on the right side of the table toolbar area. They can manifest as primary, ghost, or icon-only buttons.

      Example of a data table with radio select

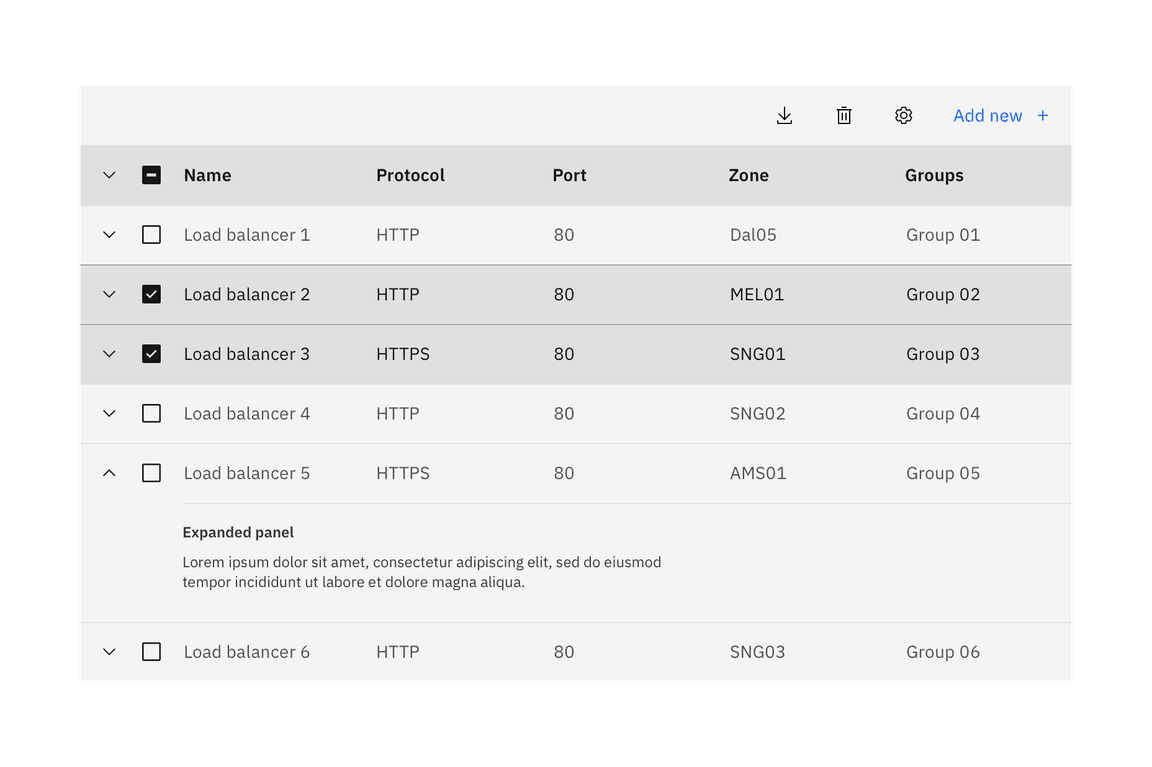

      Expandable + selectable

      Data tables can be configured to have both expandable and selectable features. The expandable icon always appears first and to the left of the selection icon.

      Example of a data table with expansion and selection

      Behaviors

      Interactions

      The data table’s toolbar and rows follow interaction conventions found in other Carbon components. Buttons, checkboxes, radio buttons, overflow menus, search, and expanding elements are used in the data table, and all behave accordingly to their guidelines.

      Mouse

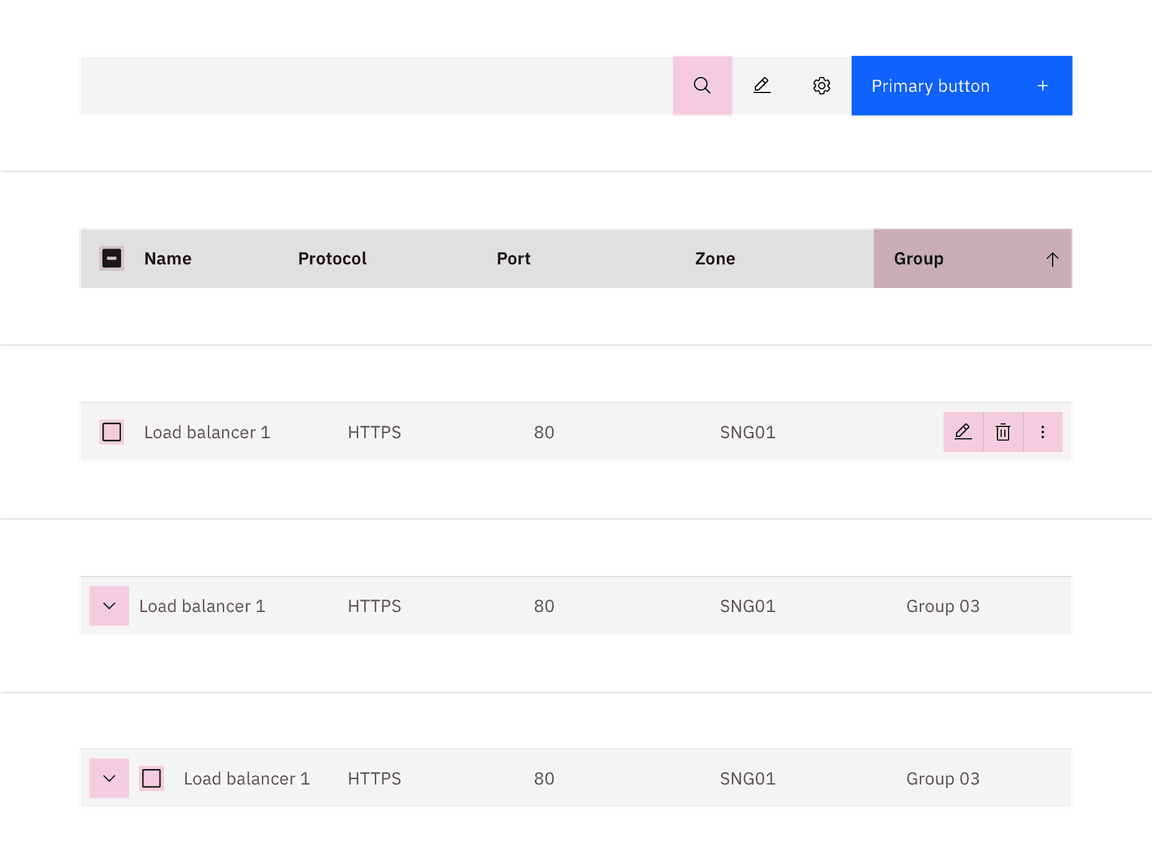

      Users can trigger an action or function in the table by clicking the associated button or component. Each action or function has its own distinct click target. See the accessibility tab for additional interactive guidance.

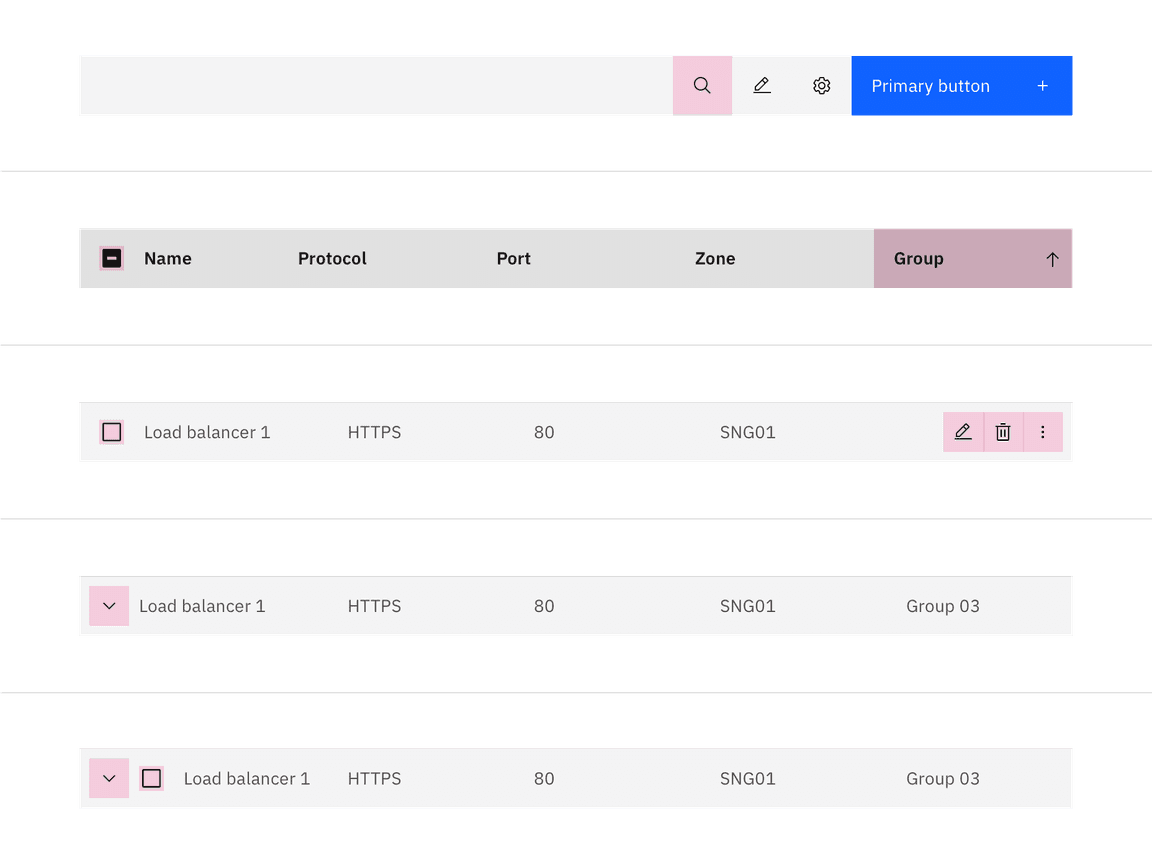

      data table target areas

      Highlighted target areas for data table mouse interactions

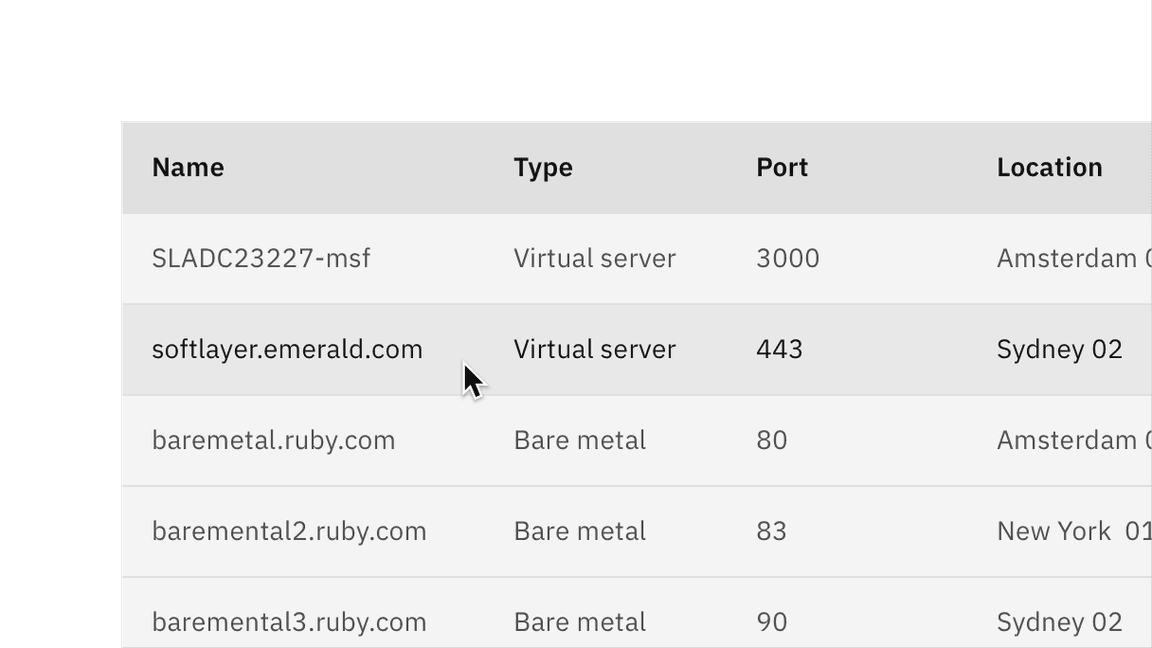

      Hover

      The data table’s row hover state should always be enabled as it can help the user visually scan the columns of data in a row even if the row is not interactive.

      data table row hover

      Pagination

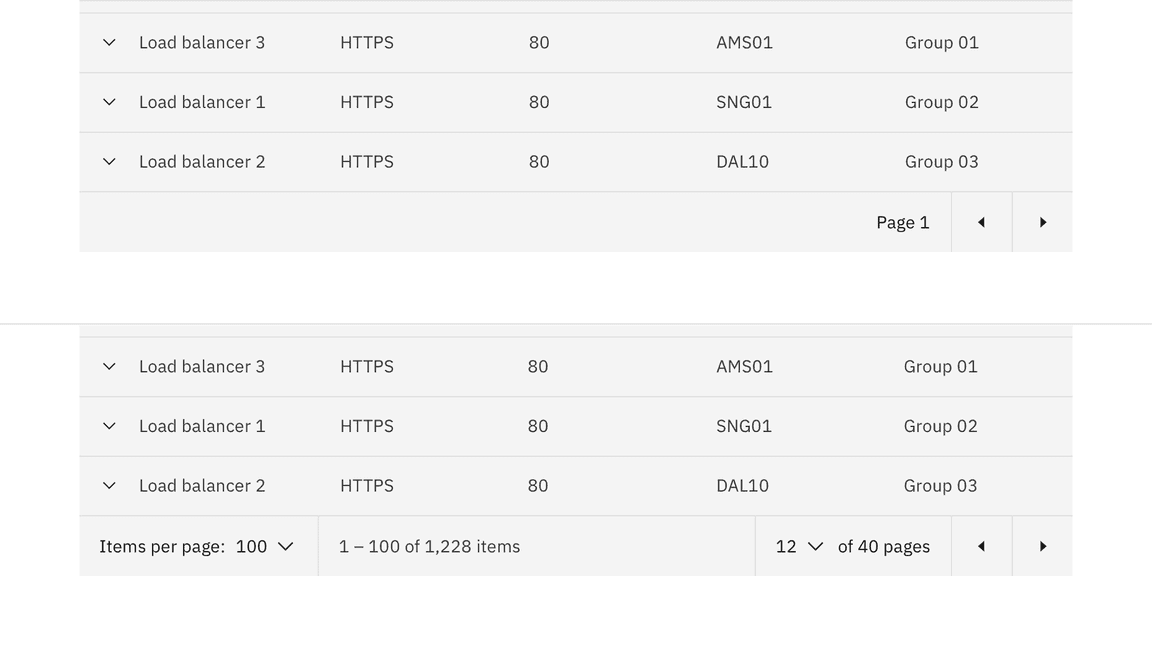

      Pagination divides table data into separate pages. Simple pagination indicates the current page in view and offers controls to incrementally navigate to the previous or next page. Advanced pagination is accompanied by an option that enables the user to change the number of items per page and to jump to a specific page number. The pagination component is always placed at the bottom of the data table. See the pagination component for further guidelines and configurations.

      data table target areas

      Simple (top) and advanced (bottom) pagination configurations

      Table toolbar

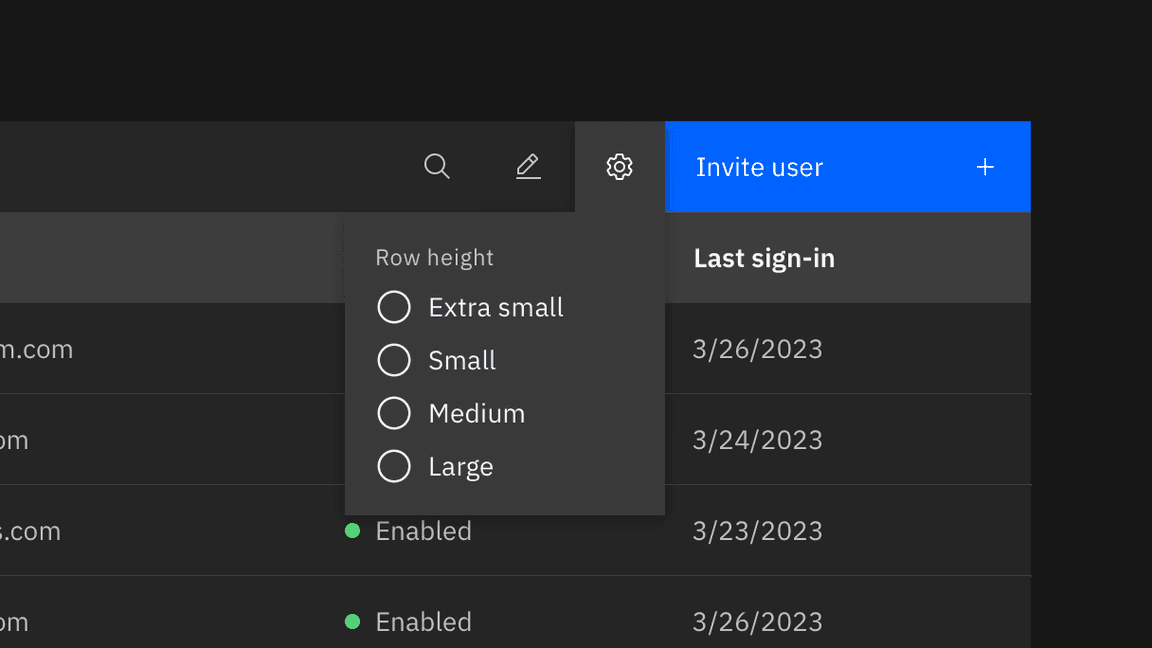

      The table toolbar is reserved for global table actions such as table settings, complex filters, exporting or editing table data. Actions in the toolbar can use primary, ghost, or icon-only buttons. We recommend showing at most five actions within the table toolbar. Additional actions can be made available through an overflow menu, combo button, or similar components.

      data table sorting in descending order

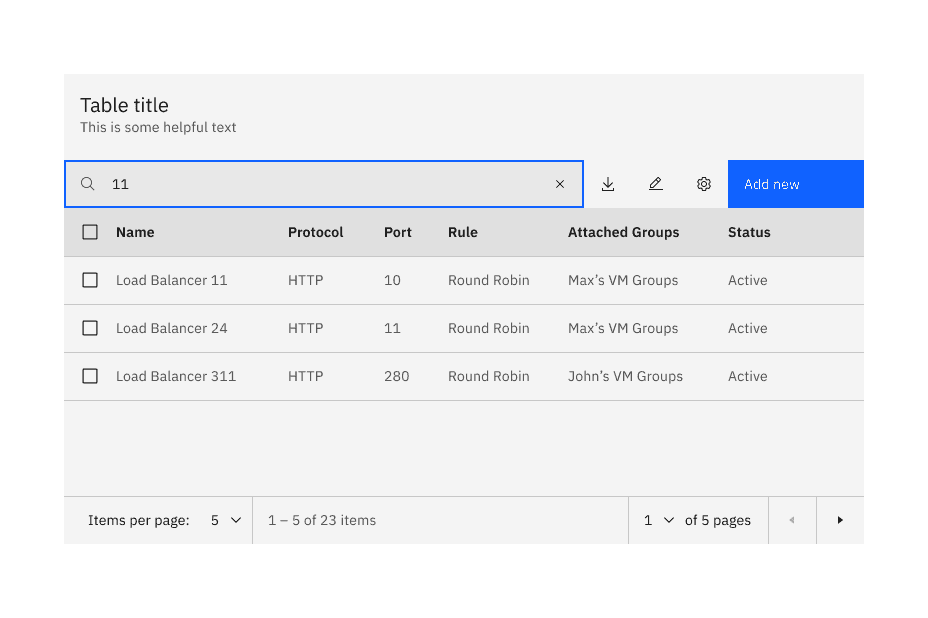

      Searching

      Collapsed search

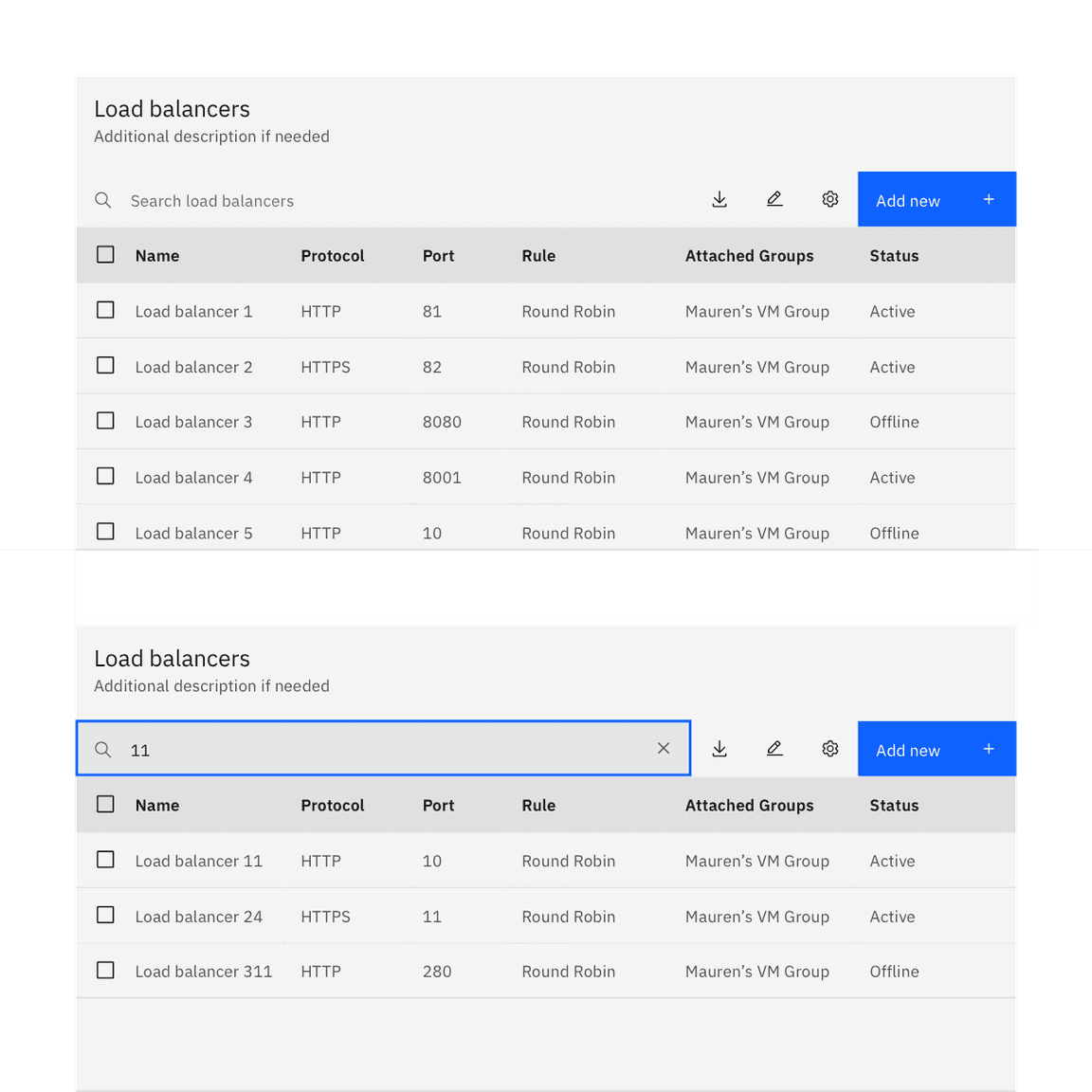

      A search field can be triggered through an icon button in the data table toolbar. By default the search functionality follows the active search pattern. The search should be closed by default, and placed below the table title.

      data table search

      Open search

      The search field can appear always open on a data table. The field is placed on the left side of the table under the table title and stretches until it meets the actions on the right.

      data table search

      Sorting

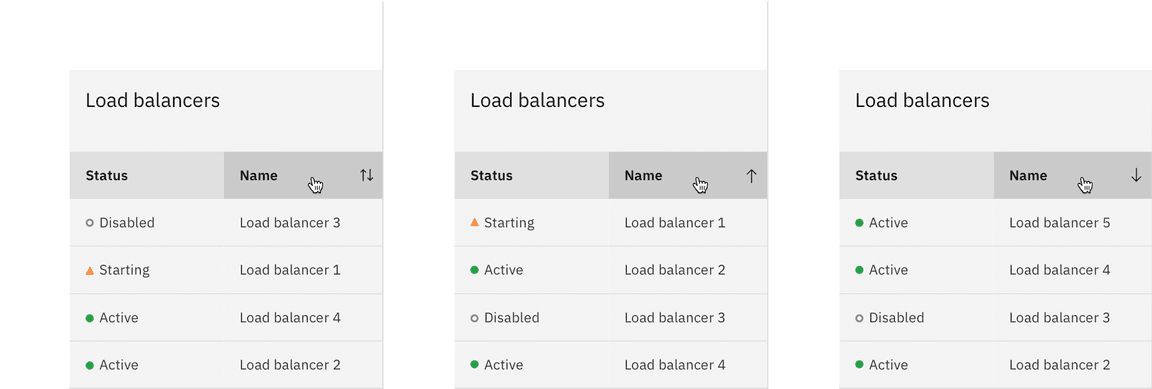

      Columns can be sorted in ascending or descending order. Sorting controls are located in the column headers and indicated with an arrow icon on hover and when a column has been sorted.

      A sorted data table has three states: unsorted (arrows), sorted-up (arrow--up) or sorted-down (arrow--down). The icon indicates the current sorted state and is only shown if sorting is activated. Only the column being sorted should display an icon, and unsorted icons are only visible on hover. You can see a demo of table sorting in Carbon’s React Storybook.

      data table unsorted

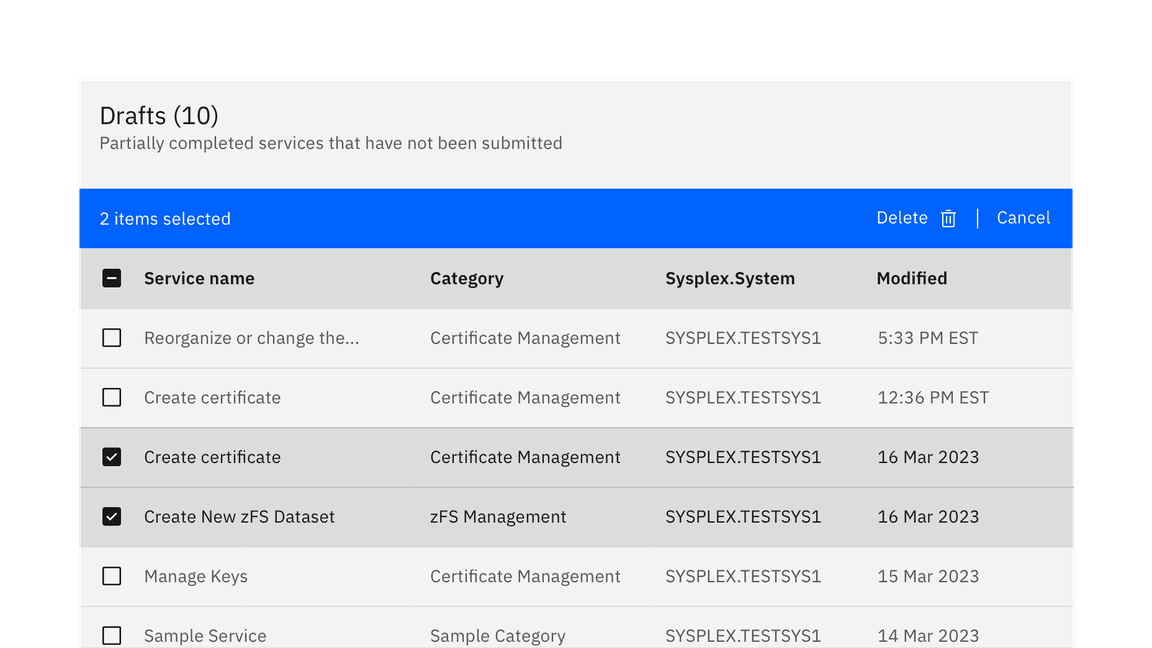

      Batch actions

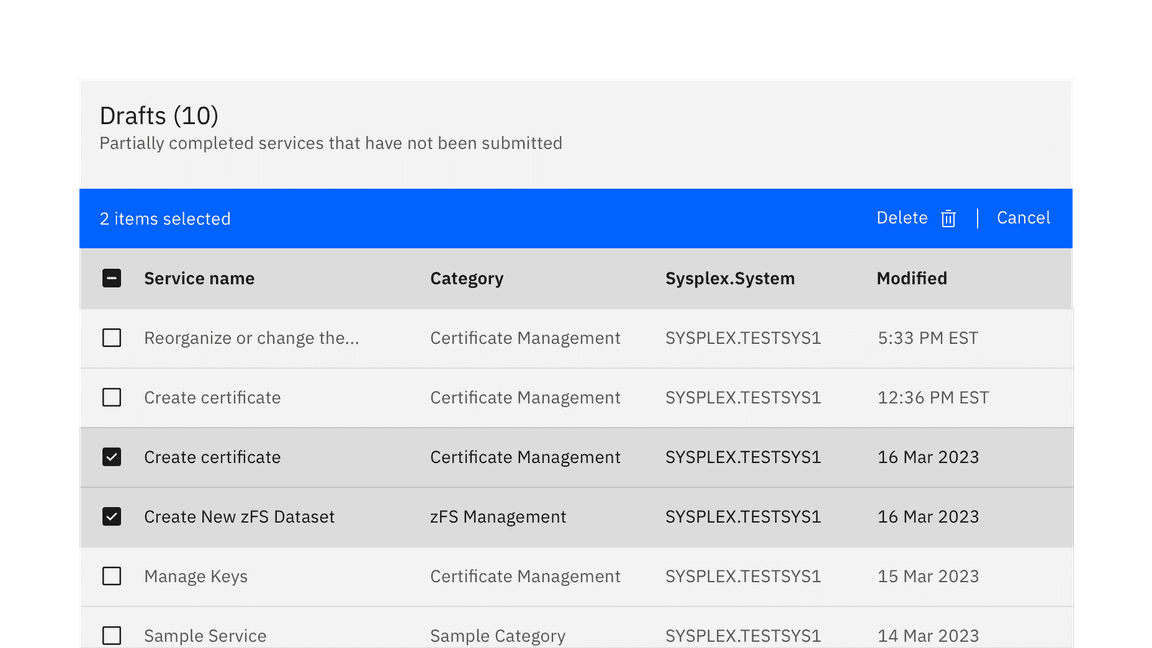

      Users can perform batch actions on one or more items within a table. Once an item from the table is selected, the batch action bar appears at the top of the table, presenting a set of possible actions to apply to all select items. This feature can increase user efficiency compared to the effort of repetitively performing the same inline action across multiple table items. When batch mode is active, single action icons and overflow menus on the row should be disabled.

      To exit the batch action mode, the user can select the cancel button on the far right of the bar or deselect all items.

      data table multi select

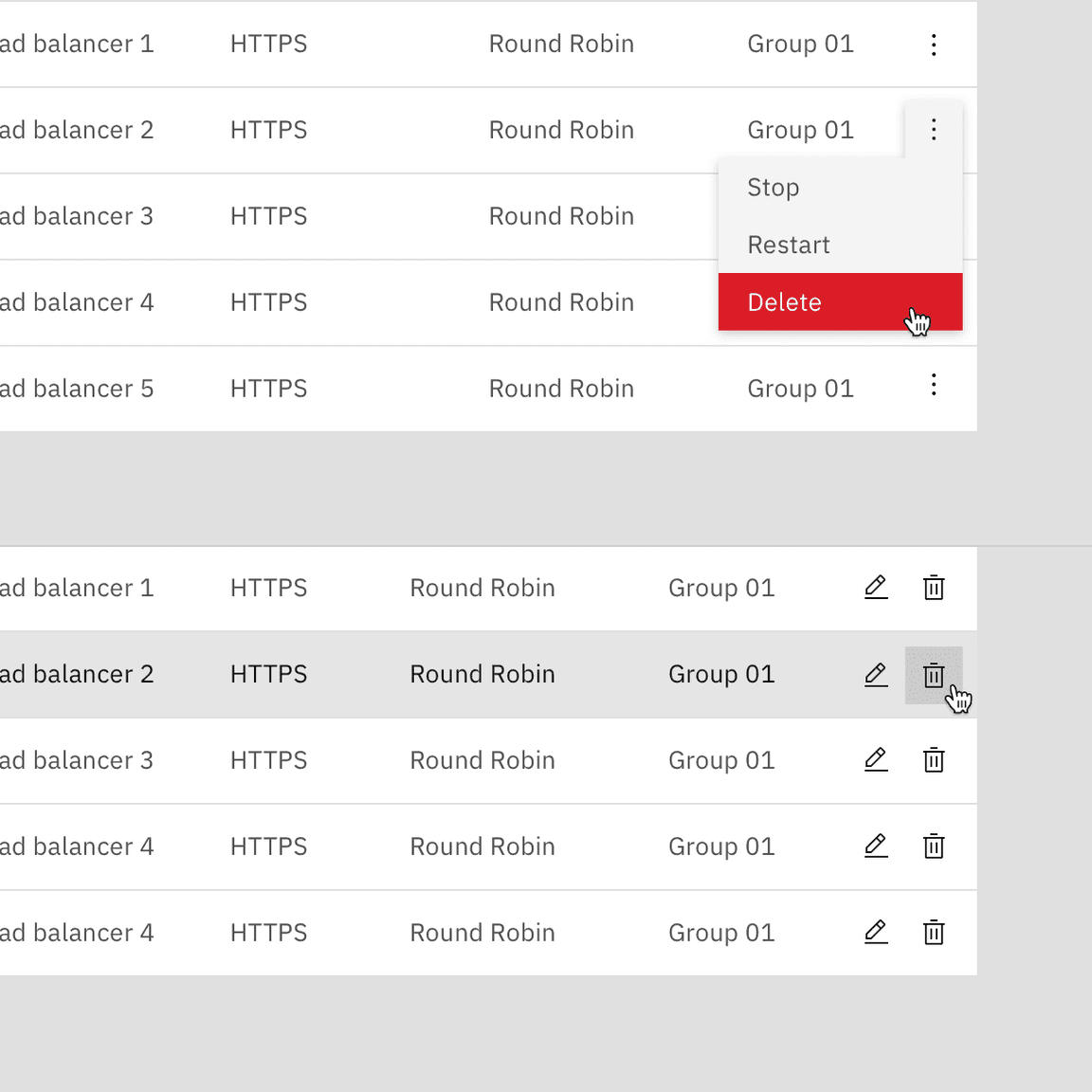

      Inline actions

      Inline actions are functions that may be performed on a specific table row. Each row is accompanied by an overflow menu that contains actions related specifically to that row.

      When the overflow menu contains fewer than three options, keep the actions inline as icon buttons instead. This reduces a click and makes available actions visible at a glance.

      data table inline actions

      Overflow menu

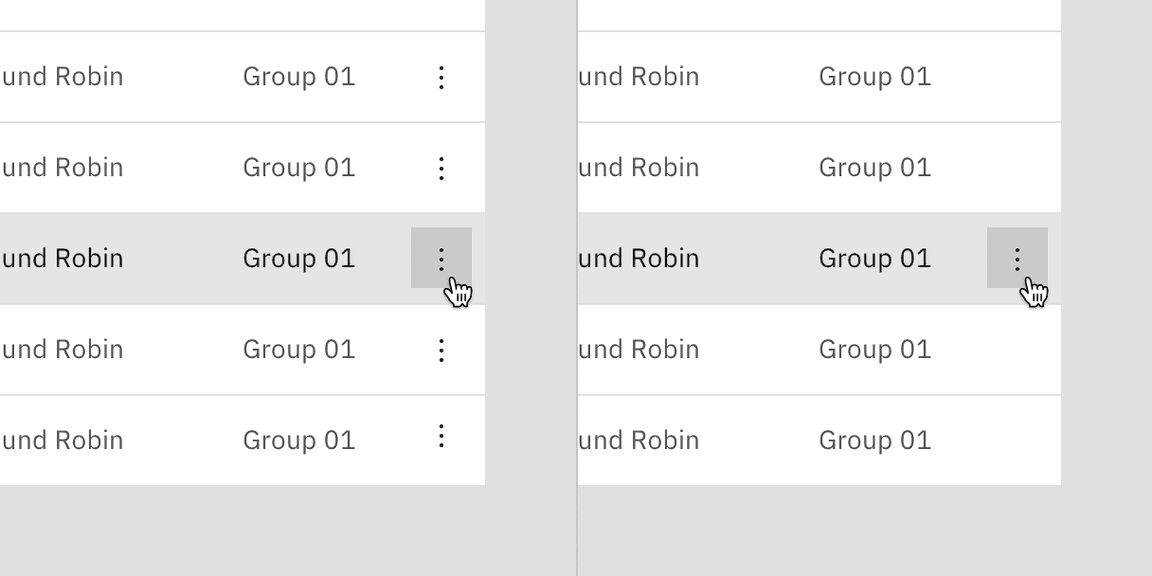

      By default, the overflow menu icons are persistent on each row. Having the overflow menus always visible signals to the user actions can be taken on the table rows. Alternatively, a product team may use the overflowMenuOnHover prop to only show the overflow menu on hover and focus to reduce the visual clutter of an overflow menu on every row.

      For mobile and touch devices the data table will detect if the user agent supports hover-over and persist the overflow menus even if the overflowMenuOnHover prop is enabled.

      data table inline actions

      Persistent overflow (left), on hover (right).

      Loading

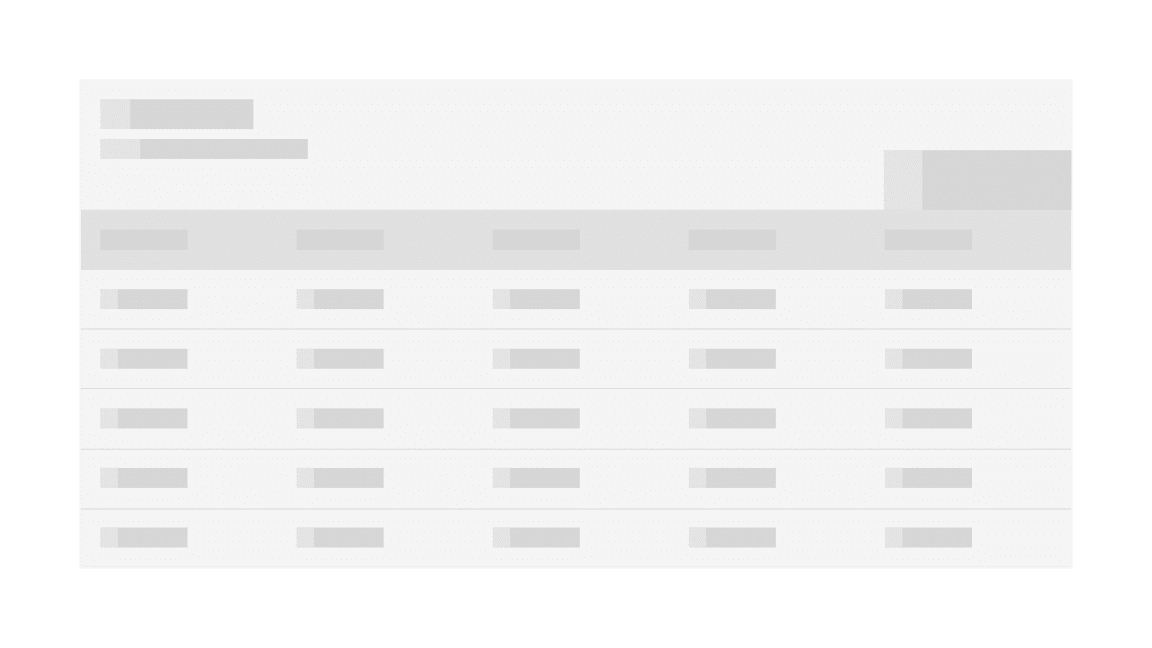

      If additional load time is expected to display information, use skeleton states instead of spinners.

      data table in expanded and collapsed state

      Expanding all rows with skeleton states

      Modifiers

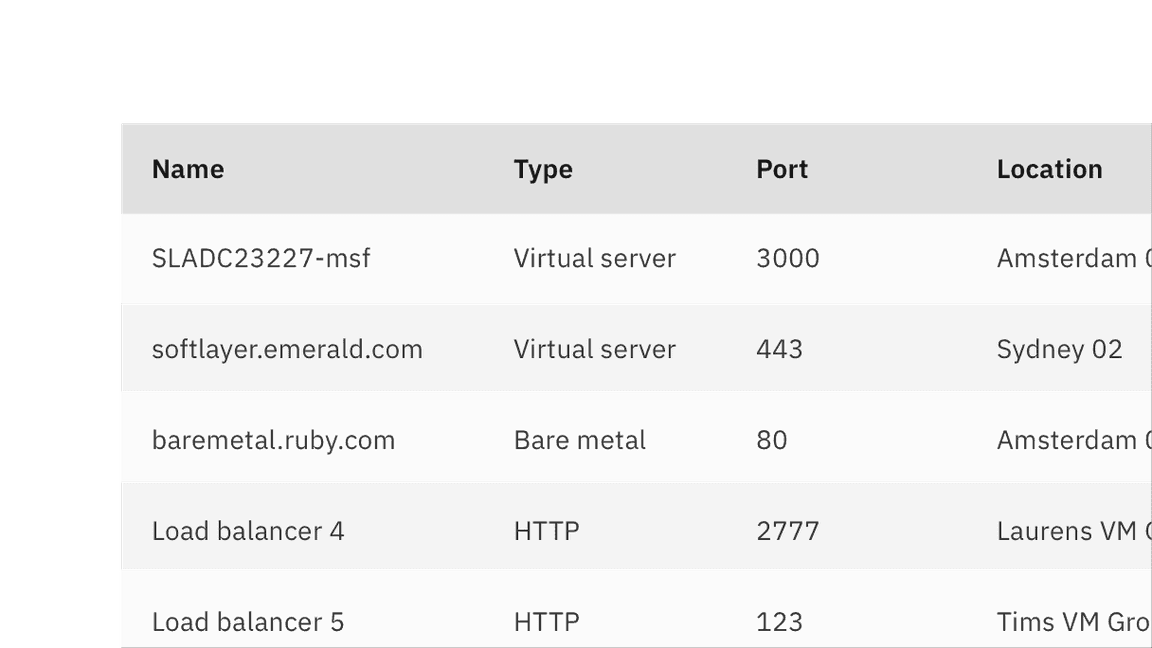

      The data table features a zebra stripes modifier that styles the table rows with alternating colors to make scanning horizontal information easier for the user.

      data table with zebra stripes

      Community extensions

      Carbon for IBM Product

      This content is accessible to IBMers only.

      Similar components

      The following components are additional ways to organize and navigate data.

      Feedback

      Help us improve this pattern by providing feedback, asking questions, and leaving any other comments on GitHub.
