Structured list

Structured lists group content that is similar or related, such as terms and definitions.

Live demo



      This live demo contains only a preview of functionality and styles available for this component. View the full demo on Storybook for additional information such as its version, controls, and API documentation.

      Accessibility testing status

      For every latest release, Carbon runs tests on all components to meet the accessibility requirements. These different statuses report the work that Carbon has done in the back end. These tests appear only when the components are stable.

      Overview

      Structured list displays a simple list with a considerable amount of items of read-only values. It helps organize and present grouped information into logical and scannable patterns. The content within a list can be stacked to create hierarchy within the data.

      When to use

      • To browse information or select certain information within the group in the simplest form
      • To view description and detailed information, present features, or compare pricing plans

      When not to use

      Nesting items is not recommended, as structured lists are used to present simple data. If you have more than 25 items or additional content that needs to be shown, consider using a data table, which supports nesting items and presents a larger set of content.

      Variants

      VariantPurpose

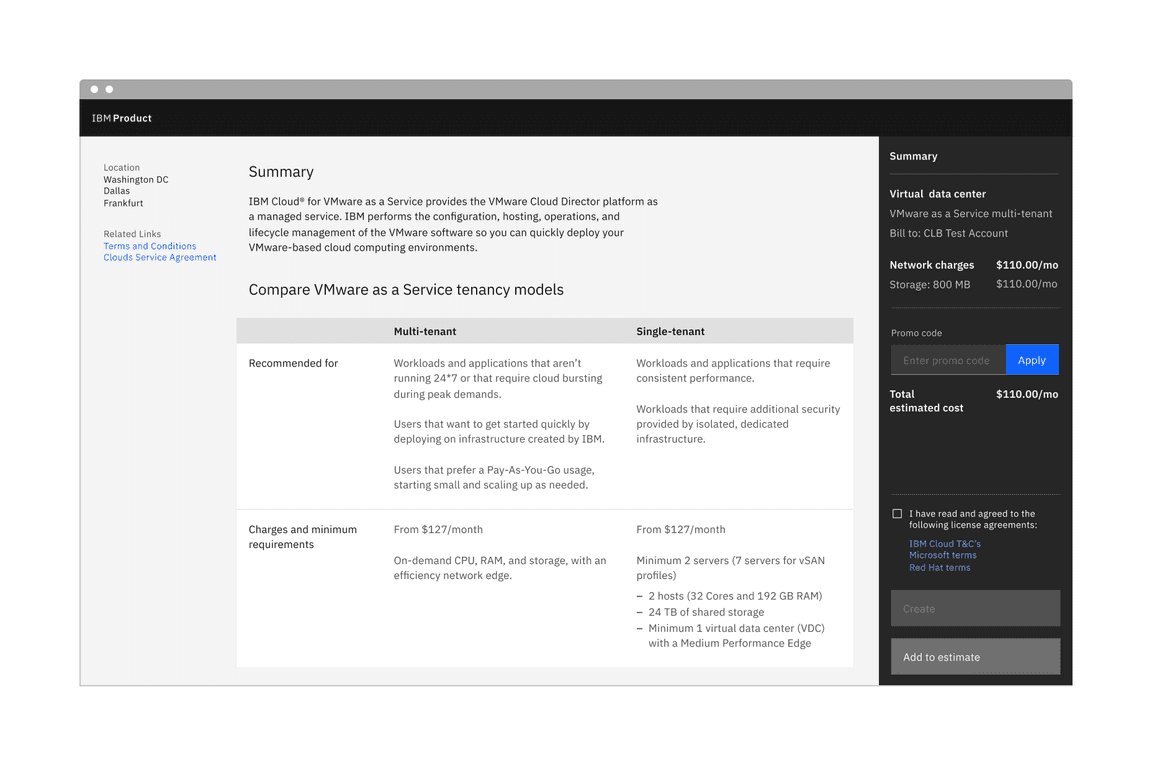

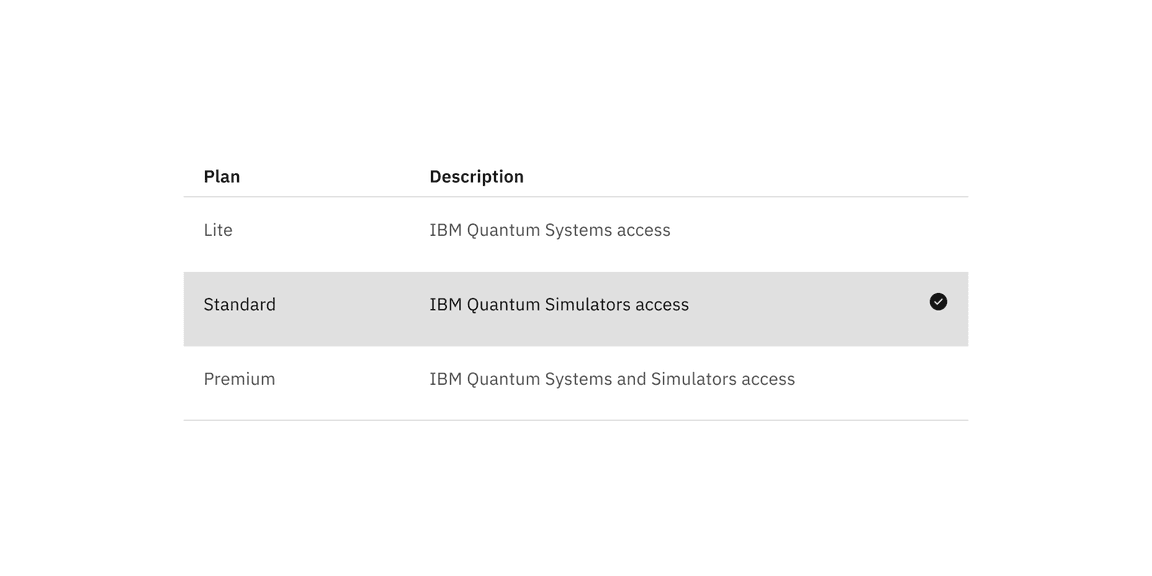

      DefaultAllows the user to quickly browse and view information within a group of data

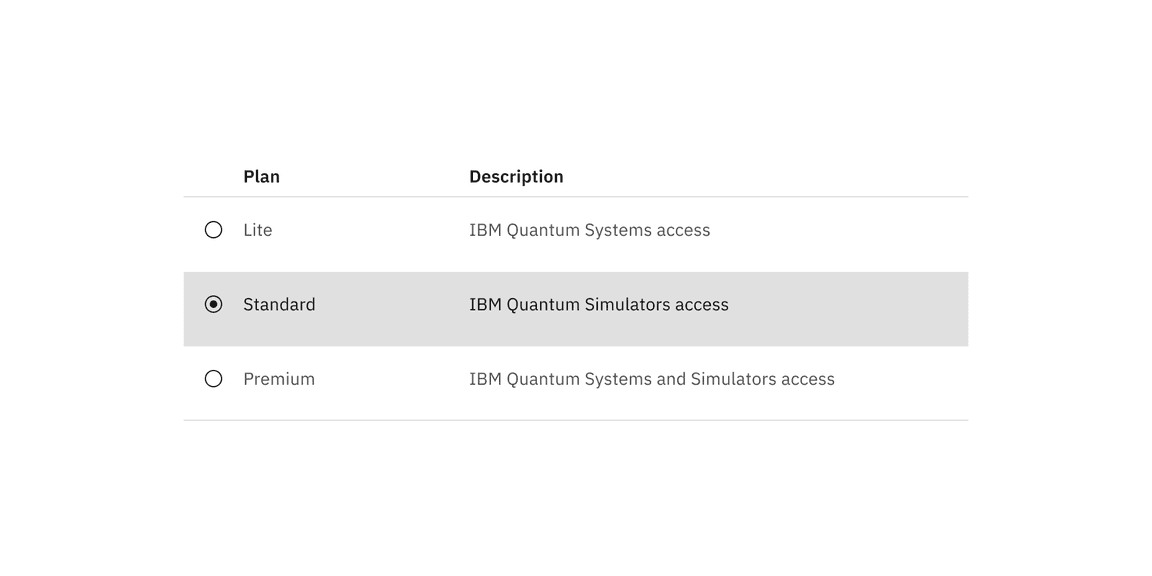

      SelectableAllows the user to mark or select a desired option within a group of data

      Formatting

      Anatomy

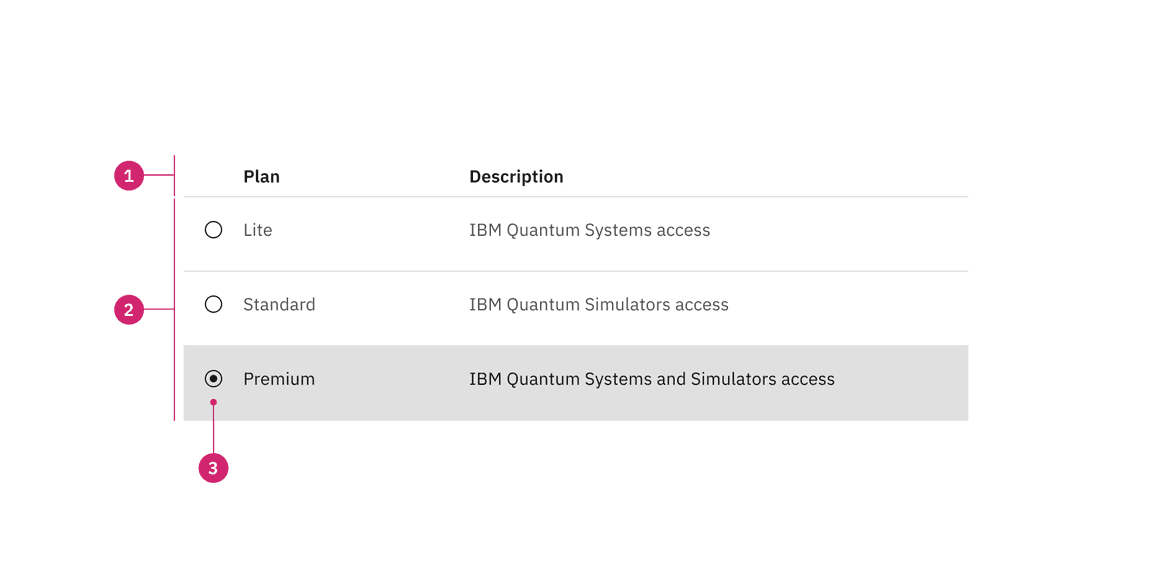

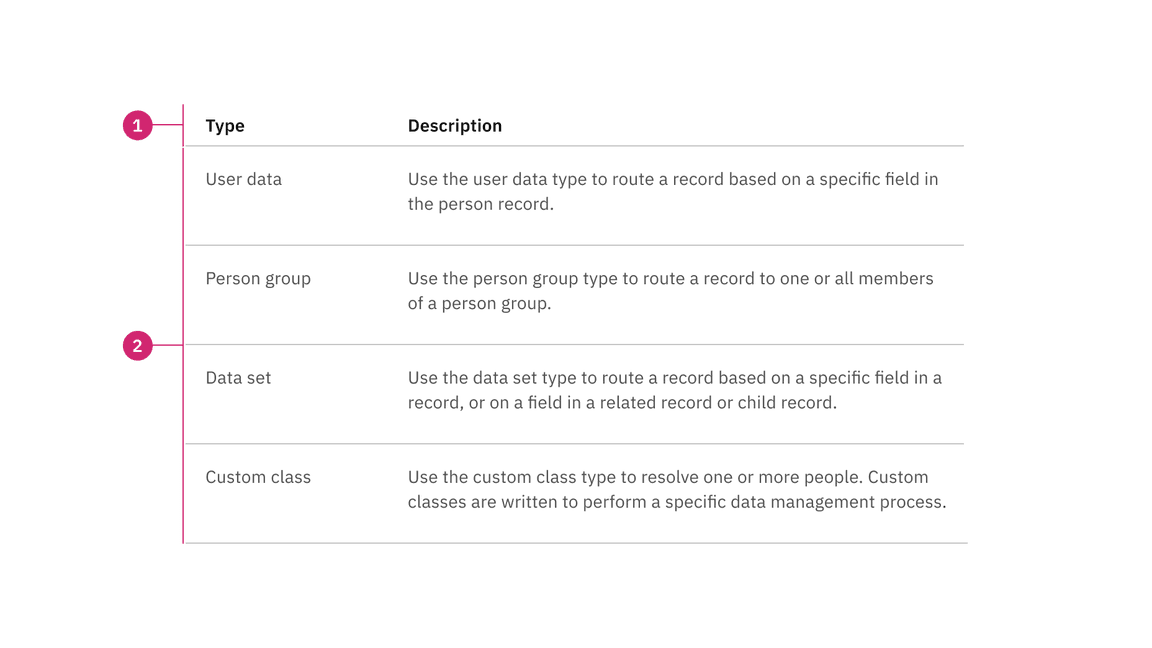

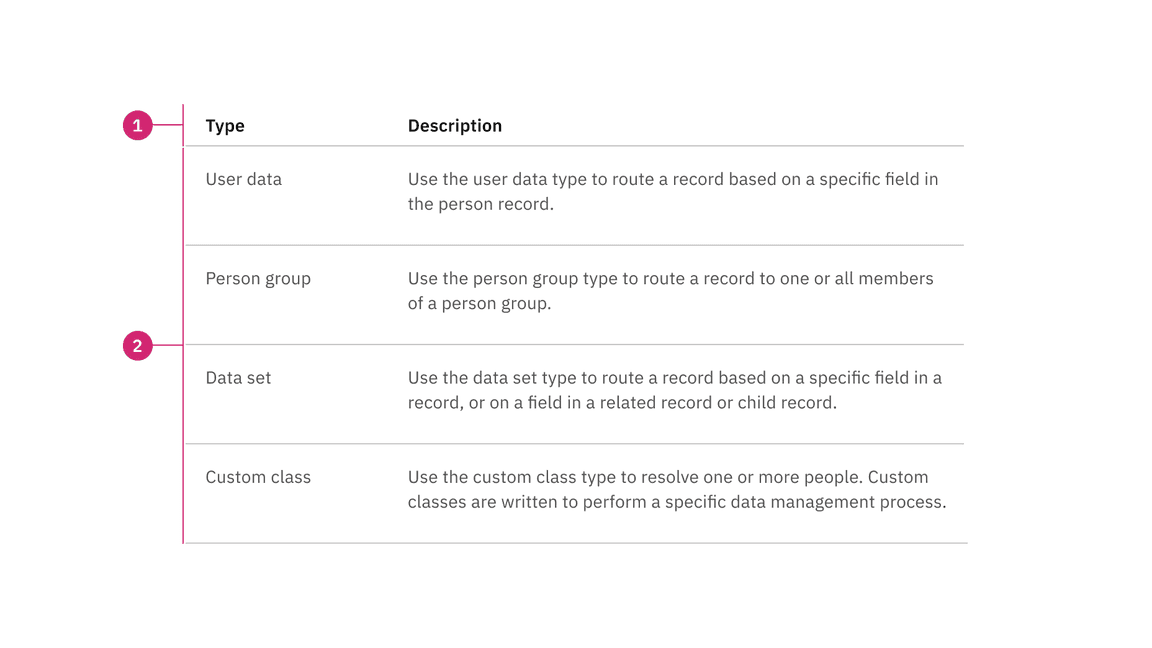

      Structured list is composed of two sections—column header and data row.

      Structured list anatomy
      1. Column header: Shows titles for the row header description.

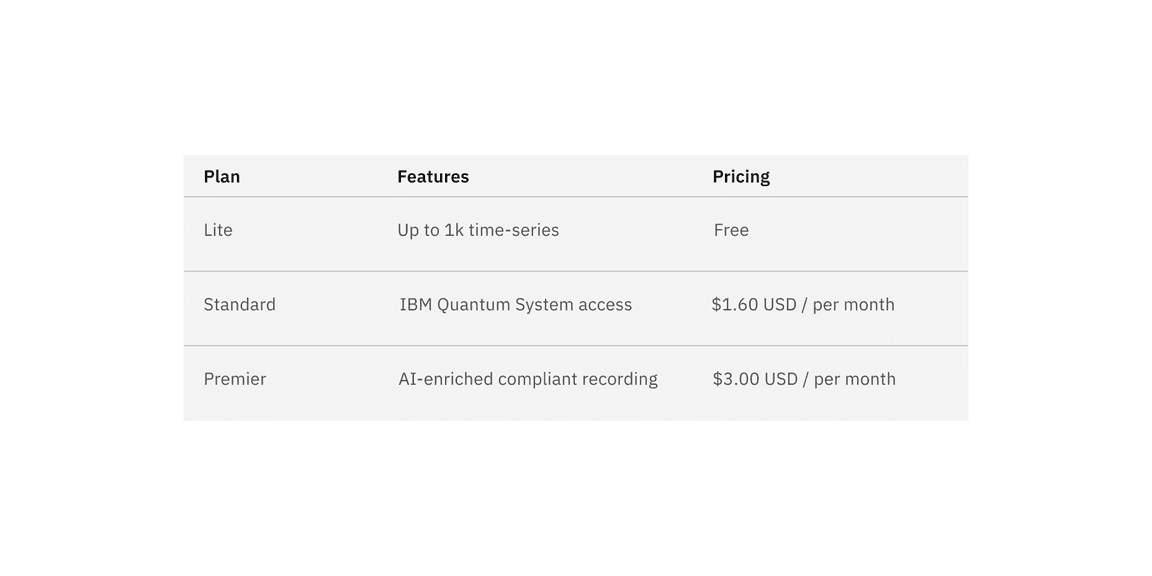

      2. Data row: Shows different types of data. Rows can be selectable and modified to show alternating zebra stripe background colors

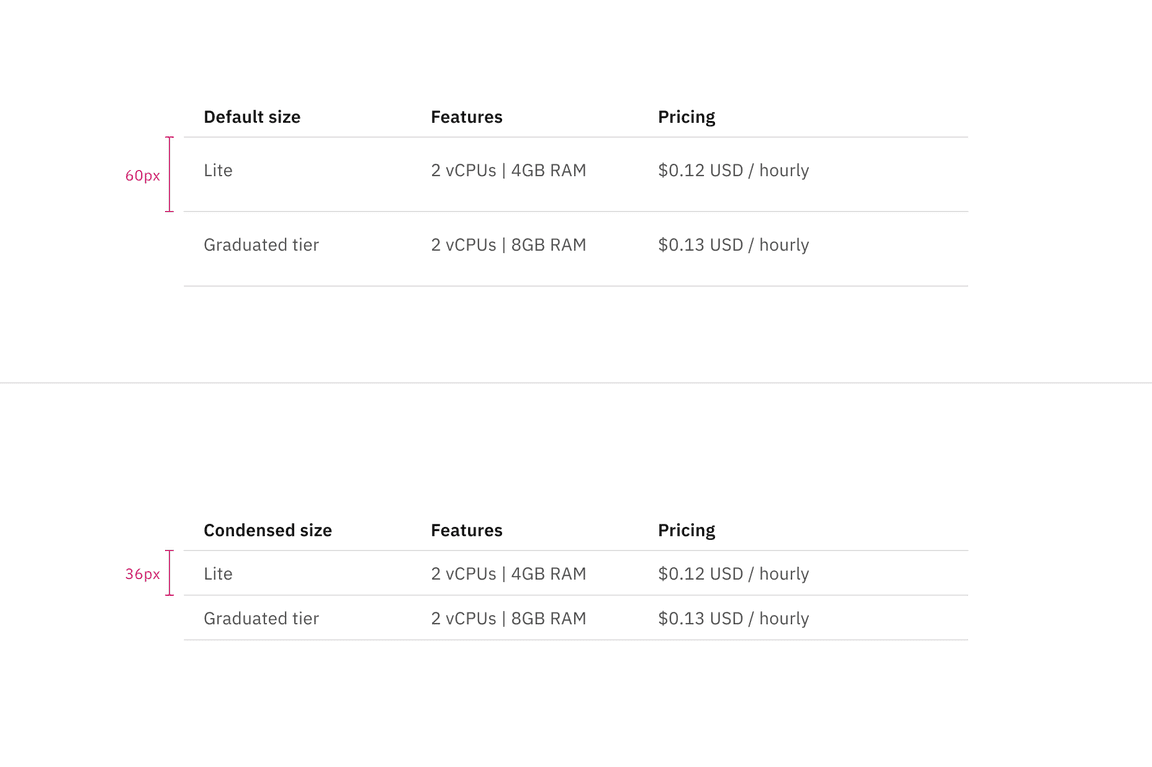

      Sizing

      The structured list is available in two different sizes in height: default and condensed. The structure list’s width varies based on content and layout.

      data table anatomy

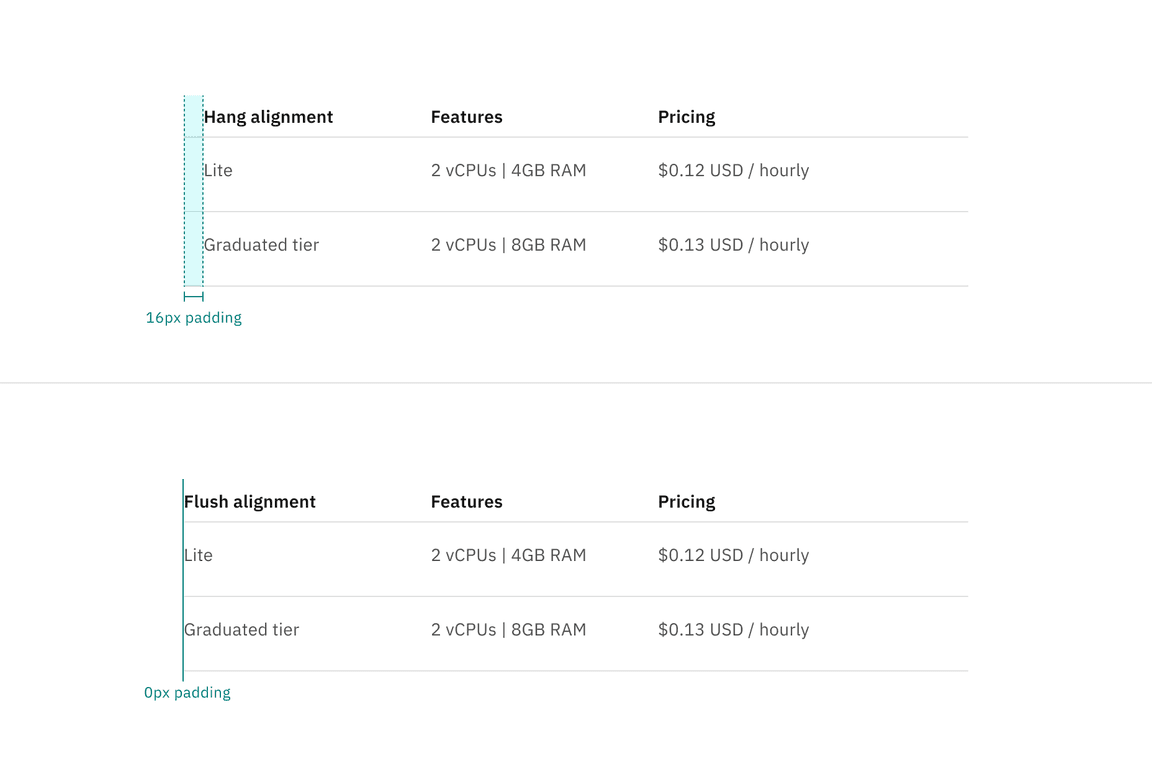

      Alignment

      The structured list is available in two alignment styles: hang and flush alignment.

      data table anatomy

      Content

      • A maximum of three paragraphs of text is recommended per row.
      • A structured list’s title and row information should use sentence-case capitalization.

      Column header titles

      • Column header titles should be short and clear, sticking to one or two words that describe the data in that column.
      • In cases where a column header title is too long, wrap the text to two lines and then truncate the rest of the text. The full text should be shown in a tooltip on hover.
      • Column header titles should use sentence-case capitalization.

      Interactions

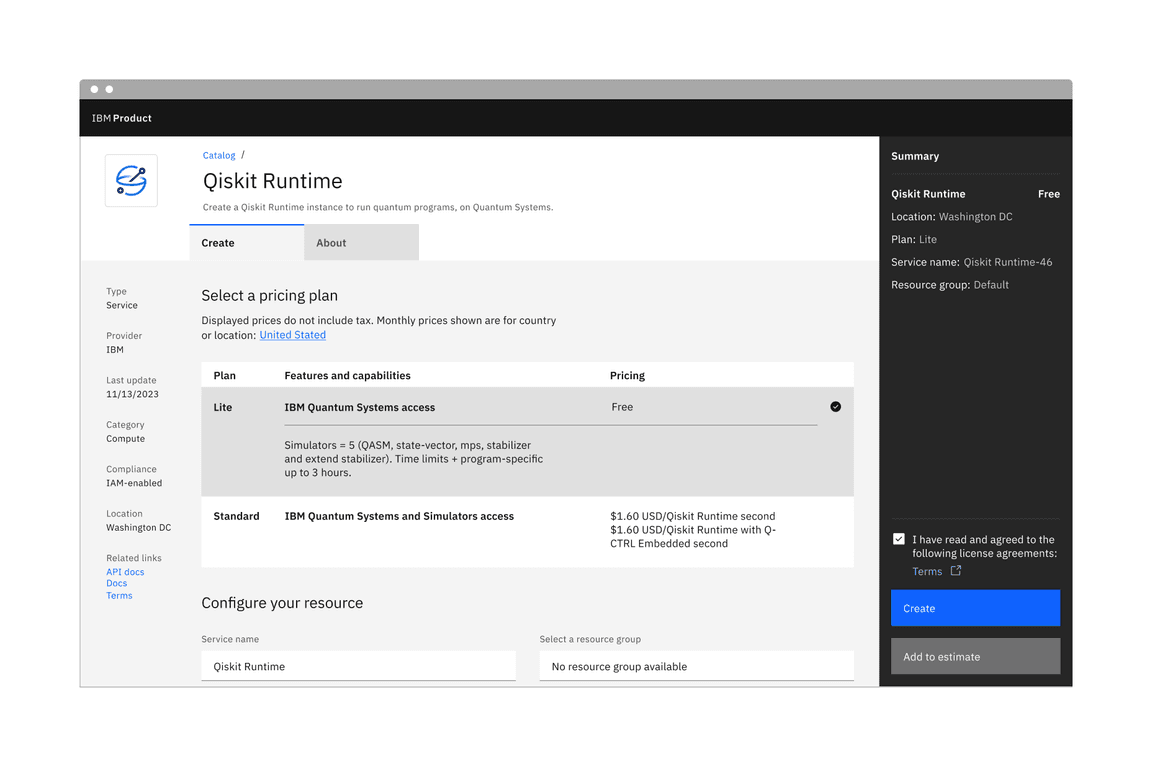

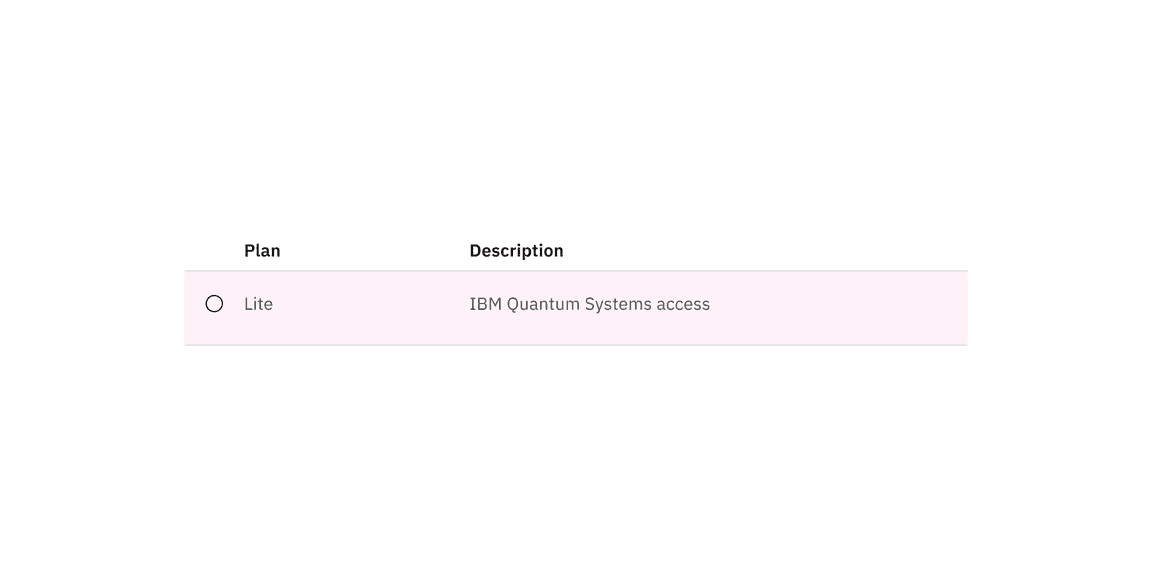

      Selectable structured list

      • Only one item can be selected from the list.
      • By default, one option should be selected.
      • If you need to select multiple items, use a data table.
      • When the user selects an item from the list, the selected row will appear with the checkmark--filled icon.

      These following components are additional ways to organize a group of data.
