Spacing

Spacing is an important — and often overlooked — part of product design. Carbon provides tokens and other utilities to take the guesswork out of spacing and help deliver clear, functional layouts

Introduction

Spacing is the negative area between elements and components. It is commonly controlled in code with margin and padding. Carbon offers several methods such as tokens and layout components to make implementing spacing in product easier and more consistent.

Spacing

The Carbon spacing scale complements the 2x Grid and typography scale by using multiples of two, four, and eight. It includes both small increments needed to create appropriate spatial relationships for detail-level designs as well as larger increments used to control the density of a design. Each level of the spacing scale has its own token. Spacing tokens can be used inside of components for building and between components for layout spacing.

Spacing scale

Use the spacing scale when building individual components. It includes small increments needed to create appropriate spatial relationships for detail-level designs. This scale is applied and used within all Carbon components.

TokenrempxExample
$spacing-010.1252spacing-3xs example
$spacing-020.254spacing-2xs example
$spacing-030.58spacing-xs example
$spacing-040.7512spacing-sm example
$spacing-05116spacing-md example
$spacing-061.524spacing-lg example
$spacing-07232spacing-xl example
$spacing-082.540spacing-2xl example
$spacing-09348spacing-3xl example
$spacing-10464spacing-4xl example
$spacing-11580spacing-5xl example
$spacing-12696spacing-6xl example
$spacing-1310160spacing-7xl example

Applying spacing

The spacing scale can be applied to margin or padding properties, as well as to both vertical and horizontal edges. The token takes the place of the values normally assigned to margin and padding. The following are all approved ways to syntactically apply Carbon spacing tokens:

margin: $spacing-03;
margin: $spacing-03 $spacing-01;
margin: $spacing-07 0 $spacing-04 0;
margin-right: $spacing-05;
padding: $spacing-04;
padding: $spacing-05 $spacing-03;
padding: $spacing-07 $spacing-04 0 $spacing-04;

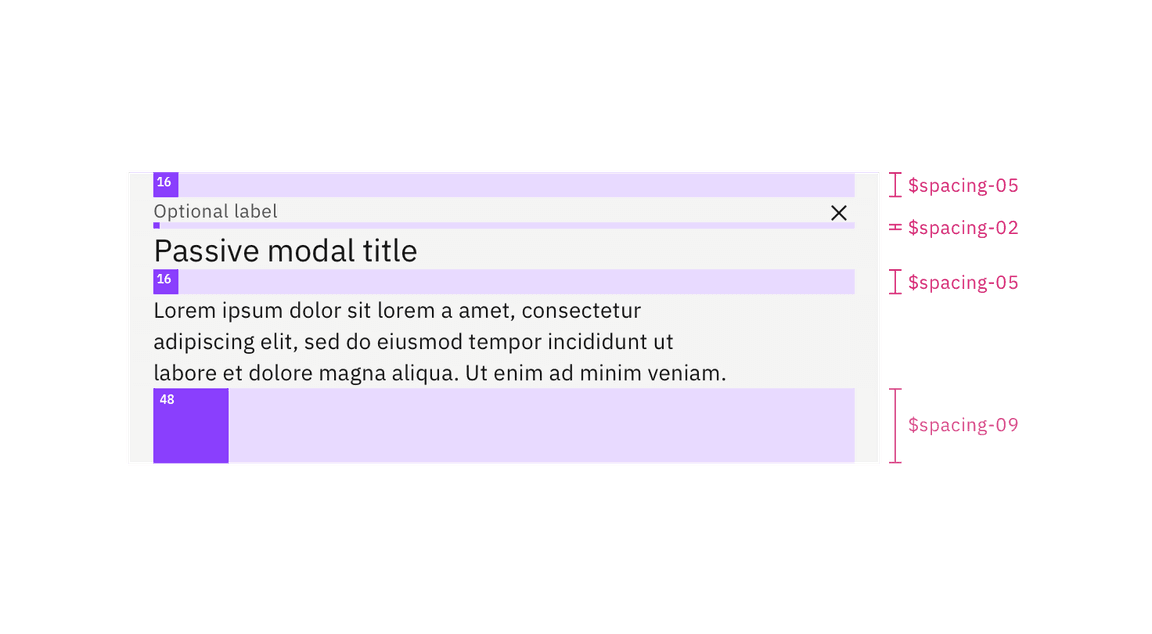

Example of spacing tokens applied

Example of spacing tokens applied

Other spacing options

There are a few other non-token methods that can be used for spacing elements. Each has its own unique use case.

MethodPurpose
centerUsed to fluidly center an element between two edges.
autoUsed on one side of an element to allow undefined space to automatically grow and shrink according to screen size. Typically used for asymmetrical fluid spacing.
gutterUsed to space items between the grid’s 12 columns

Stacking

Stacking is a form of spacing that creates equal distance between components or a group of items. Carbon provides a stack component that uses the Carbon spacing scale to determine how much space there should be between items. The stack component supports both horizontal and vertical orientations.

The Stack component is a useful layout utility in a component-based model. This allows components to not use margin and instead delegate the responsibility of positioning and layout to parent components. It also supports a custom gap property which will allow a user to provide a custom value for the gap of the layout.

For more information, see the Stack component in React storybook.

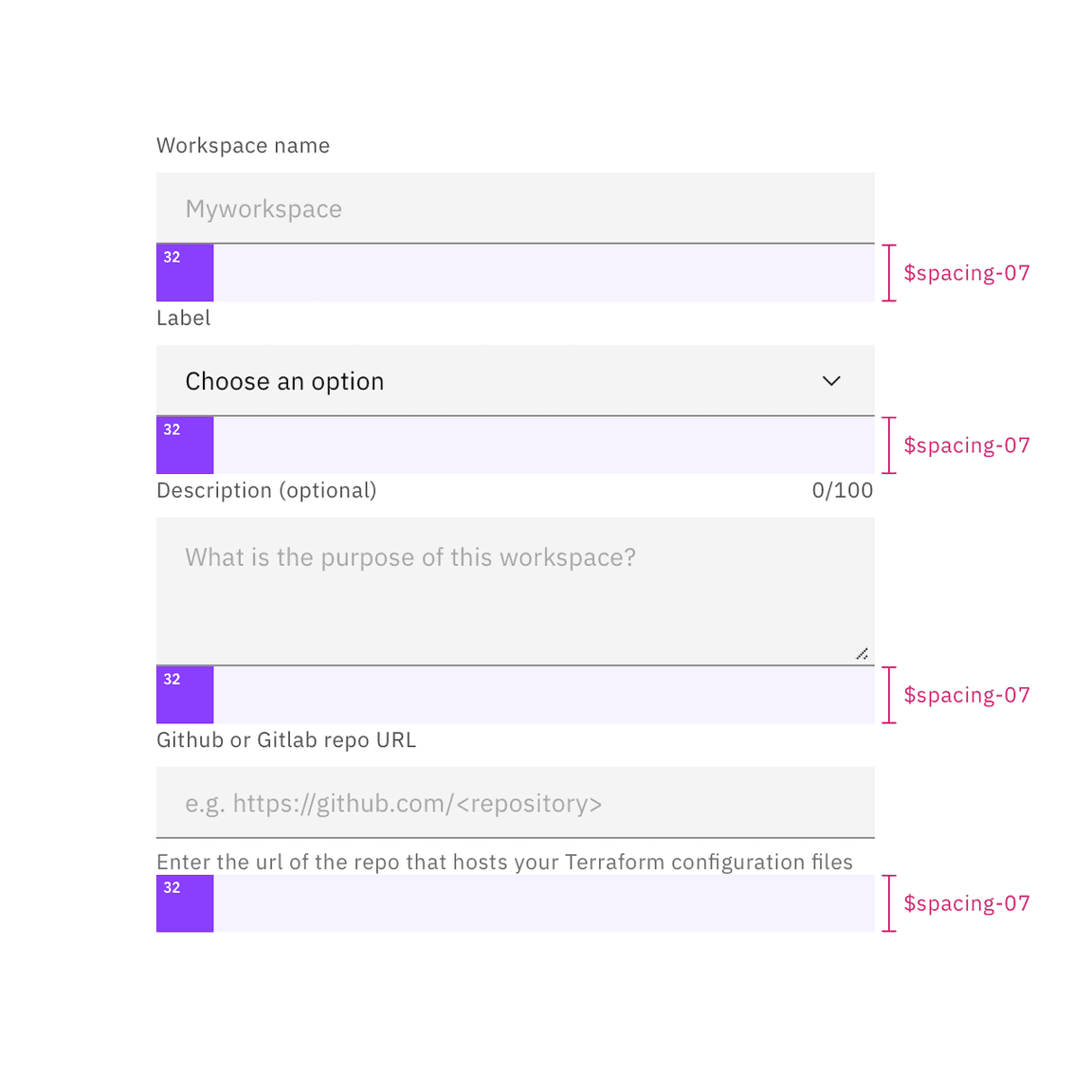

Example of spacing tokens applied with the stack component

Example of spacing tokens applied with the stack component

Designing with space

Every part of a UI should be intentional including the empty space between elements. The amount of space between items creates relationships and hierarchy.

Creating relationships

Elements in a design that are near each other are seen as being meaningfully related. As more space is added between elements, their perceived relationship weakens.

Patterns created through spacing can also create relationships. Elements arranged in the same spacing pattern are seen as related pieces that have equal weight.

Space can also be used to denote groups of associated information. This creates content sections on a page without having to use lines or other graphical elements as a divider.

Creating hierarchy

Elements that have more spacing around them tend to be perceived as higher in importance than elements that have less space around them. Take this page for instance. The top level headers have more space surrounding them giving them focus and prominence. Then as the headers descend in importance they receive less space, signaling they are subordinate.

Elements that are set close to each other can be easily overlooked. Users may see the grouping but not process each individual item. Therefore, if you have an element or content of high importance on the page, consider giving it extra surrounding space to help it attract focus.

White space

Empty space — also known as white space — is important in design. It can be used to break up sections on a page or to help create focus on certain element(s). White space helps with information processing; too much dense information can be disorienting or overwhelming for a user. Sections of a UI are allowed to be dense, but the whole page should not be crowded; there should be white space to let the user’s eye rest.

FAQ

Are spacing increments outside of the scale allowed?

There are always exceptions to the rule, but deviating from the spacing scales should be avoided whenever possible.

Can I still use the Carbon grid for horizontal spacing?

Yes, in fact it’s encouraged.

Can I use percentages for spacing?

Percentages like 50% (1/2) or 33% (1/3) are acceptable ways to divide a page. Percentages can all be used to control max and min widths.

Are the spacing tokens responsive?

No, the tokens themselves do not change values based on the screen size. However, it is acceptable at page breakpoints to jump a step(s) on the spacing scale to fit spacing needs (i.e., at 1440 px padding-right: $spacing-05 but at breakpoint 768px padding-right: $spacing-03).
