Text toolbars

A text toolbar is a set of buttons and menus that allows users to edit text, search keywords, attach files, and embed links.

Note: The keyword search concept included in this pattern is not currently available for production use. The guidance included reflects our current understanding of this topic, and the pattern is currently open for code contributions.

Resources

Overview

A text toolbar is a set of buttons and menus that is grouped horizontally. These controls primarily allow text editing functionality. Formatting actions and style changes can be applied to the editable text within the text area below the text toolbar. Attaching files, embedding links, and searching keywords are additional functions a toolbar can have.

A text toolbar can be customized by adding or removing icon buttons based on specific user needs. This pattern illustrates the following options:

  • Redo
  • Undo
  • Cut
  • Copy
  • Paste
  • Typeface
  • Type size
  • Bold
  • Italic
  • Underline
  • Text color
  • Alignment
  • Bulleted list
  • Checked list
  • Numbered list
  • Indent more
  • Indent less
  • Attachment
  • Link
  • Search

Anatomy

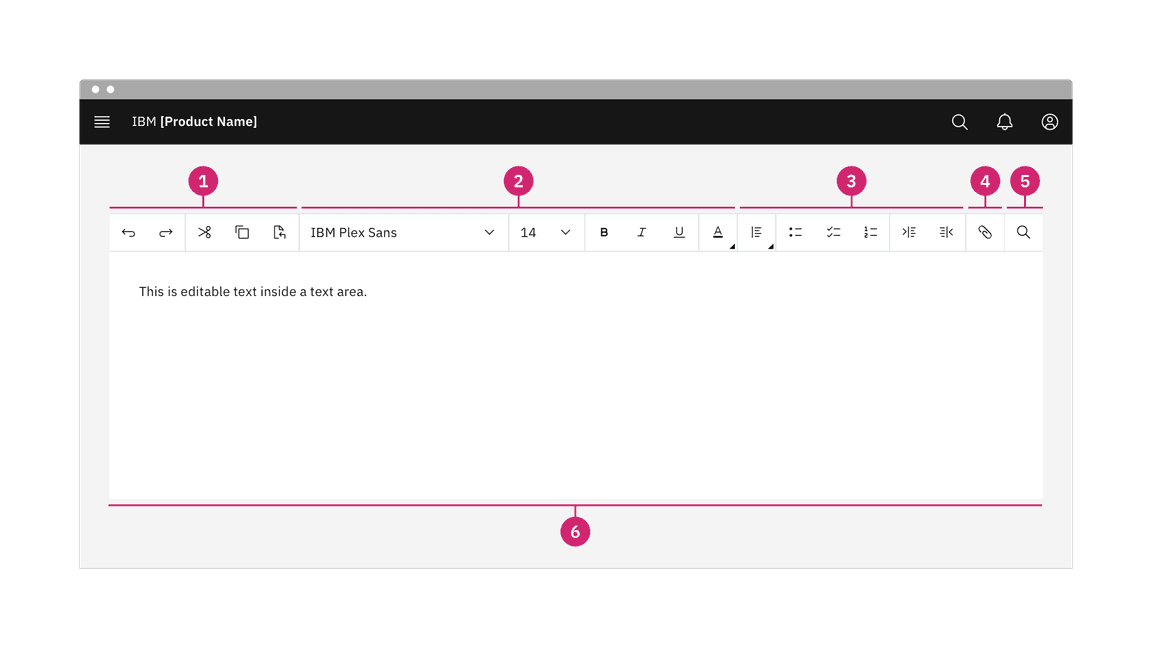

Anatomy of a text toolbar
  1. Actions: Use “Undo” and “Redo” to undo or revert the last change made. Use “Cut”, “Copy”, and “Paste” to move pieces of text to another place within the text area, to copy text to the clipboard, or to paste copied text from the clipboard to a different place within the text area.
  2. Formatting: Change the typeface, size, style, and color of text.
  3. Paragraph: Select different alignments and indents for paragraph text and indicate bulleted, checked, or numbered lists.
  4. Attachment: Attach files or embed links in strings of text.
  5. Search: Search keywords within existing paragraphs of text.
  6. Text area: Designated area to type editable text.

When to use

The text toolbar provides an efficient way for users to perform several tasks:

  • Create, edit and save simple text files quickly.
  • Edit text with common actions like cut, copy and paste and formatting text styles.
  • Perform basic text search functionality.
  • Attach files or embed links within text.

Behaviors

States

The text toolbar includes a series of basic actions that adopt the icon button style. The action buttons typically have five different states—enabled, hover, focus, active, and disabled.

Text toolbar button states.

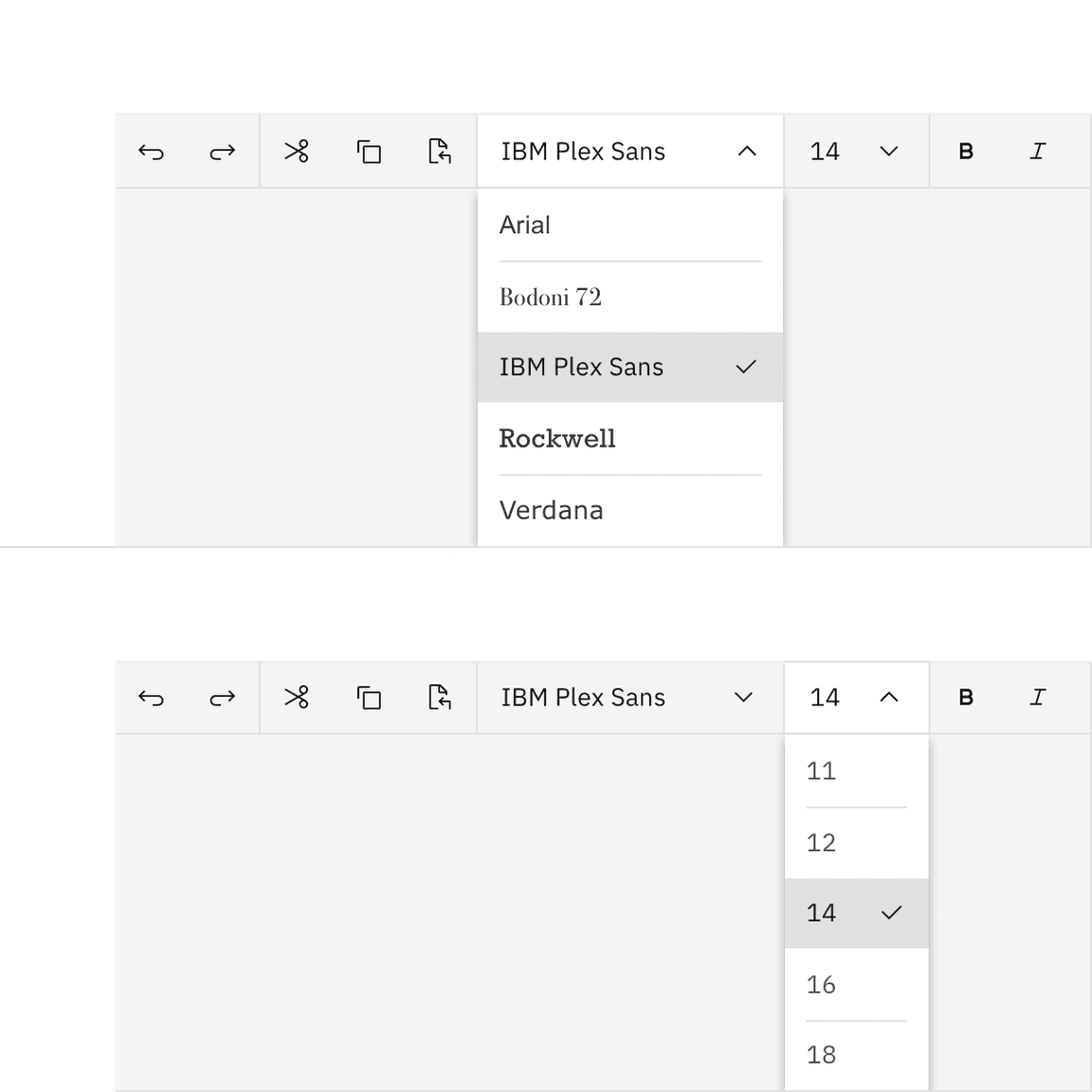

The typeface and type size menus adopt the dropdown style. The user can easily choose any typeface and type size to customize their text.

Text toolbar dropdowns.

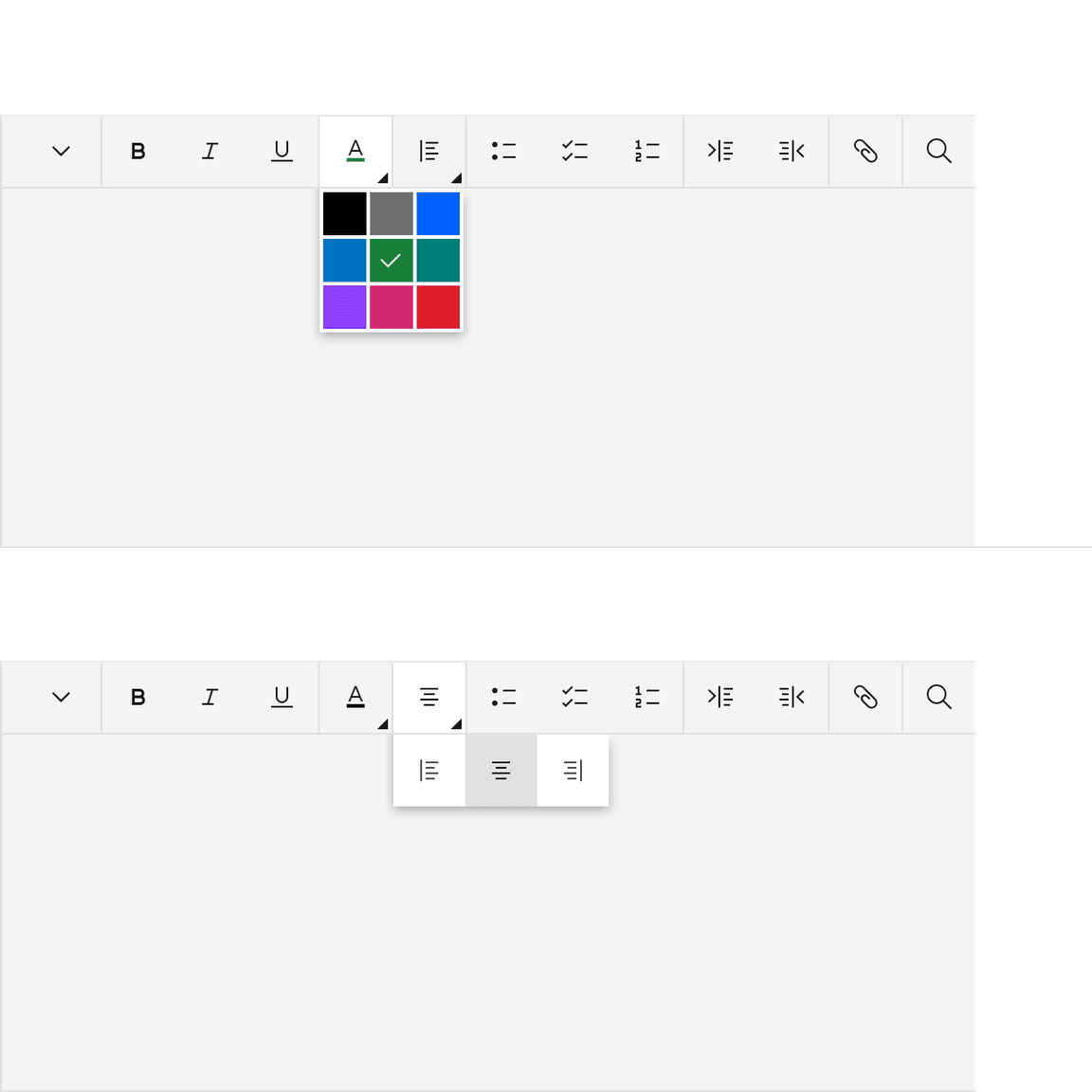

The text color and paragraph alignment controls open a menu that displays different options to choose from.

Text toolbar menus.

Attach files

The user can upload and attach a file from their computer.

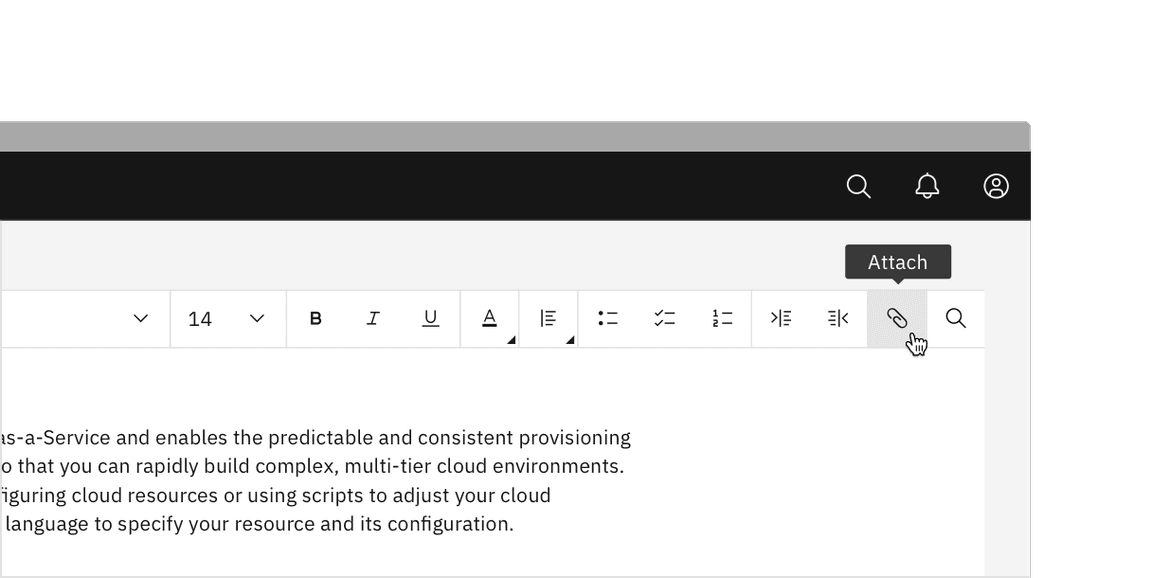

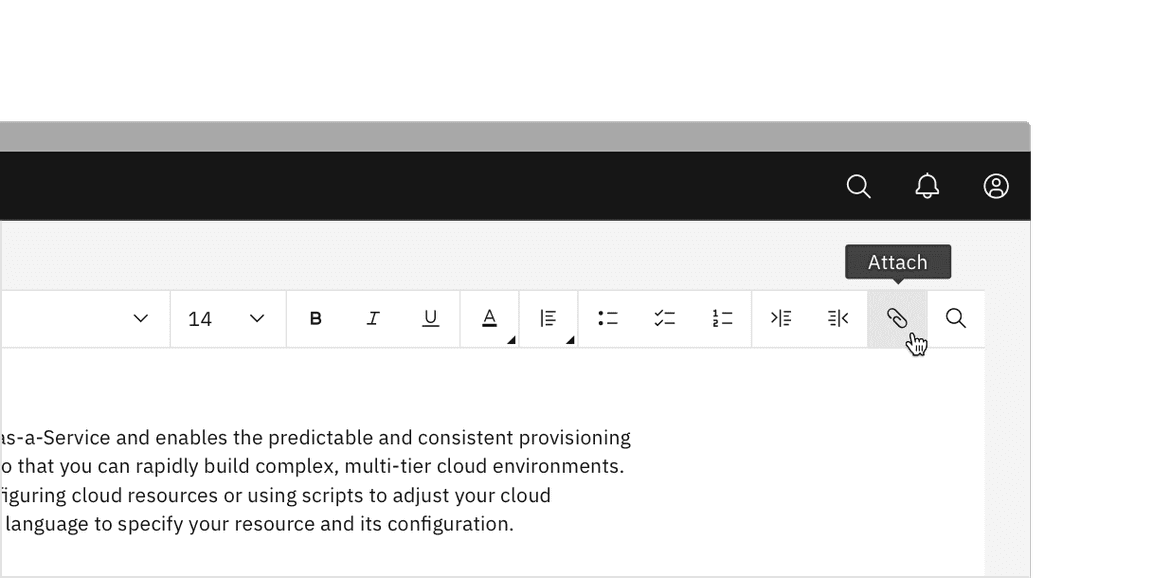

Hover on "Attachment" button.

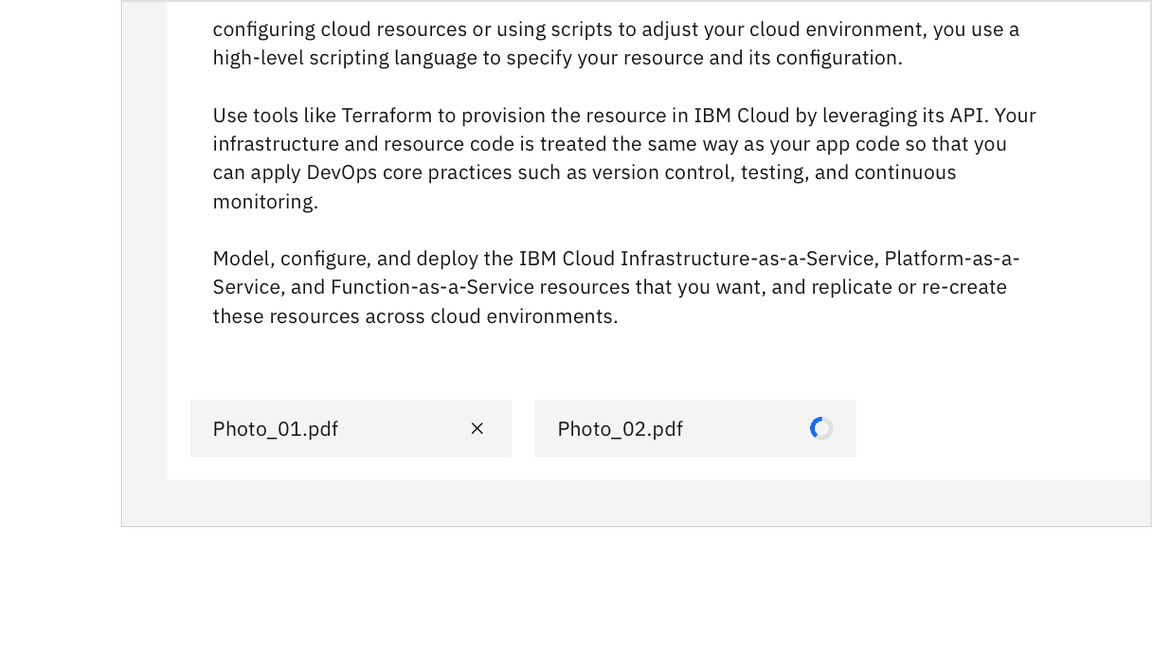

Once a file has been chosen, the file will load in the bottom left of the text area. A file can be removed by clicking the close x icon.

Attaching files to the text area.

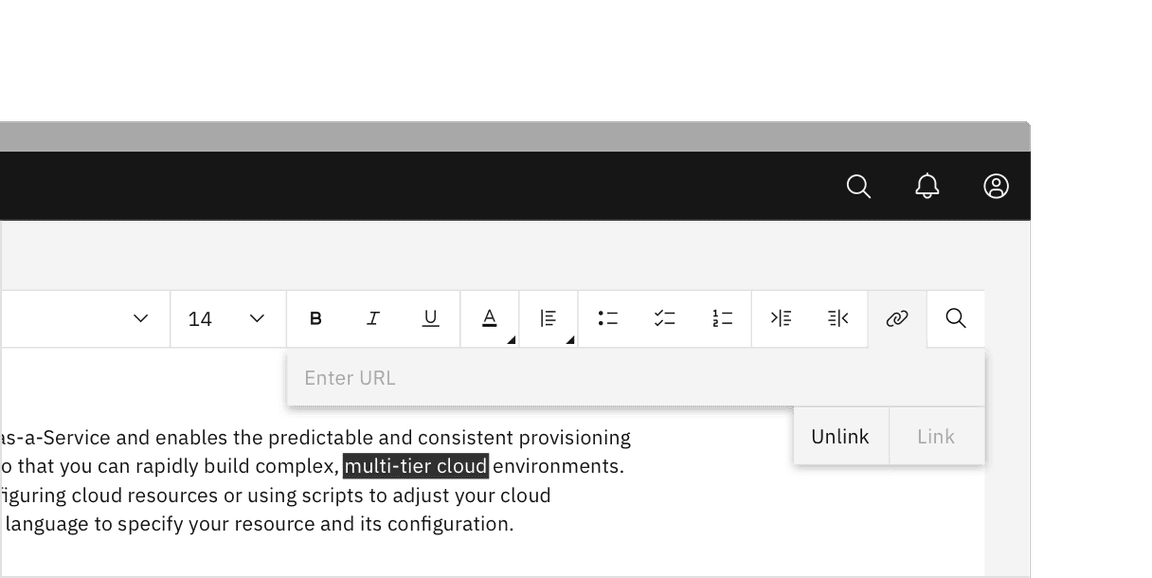

Links can be embedded within strings of text. To embed a link, click on the link button to open the text field.

Embedding text links.

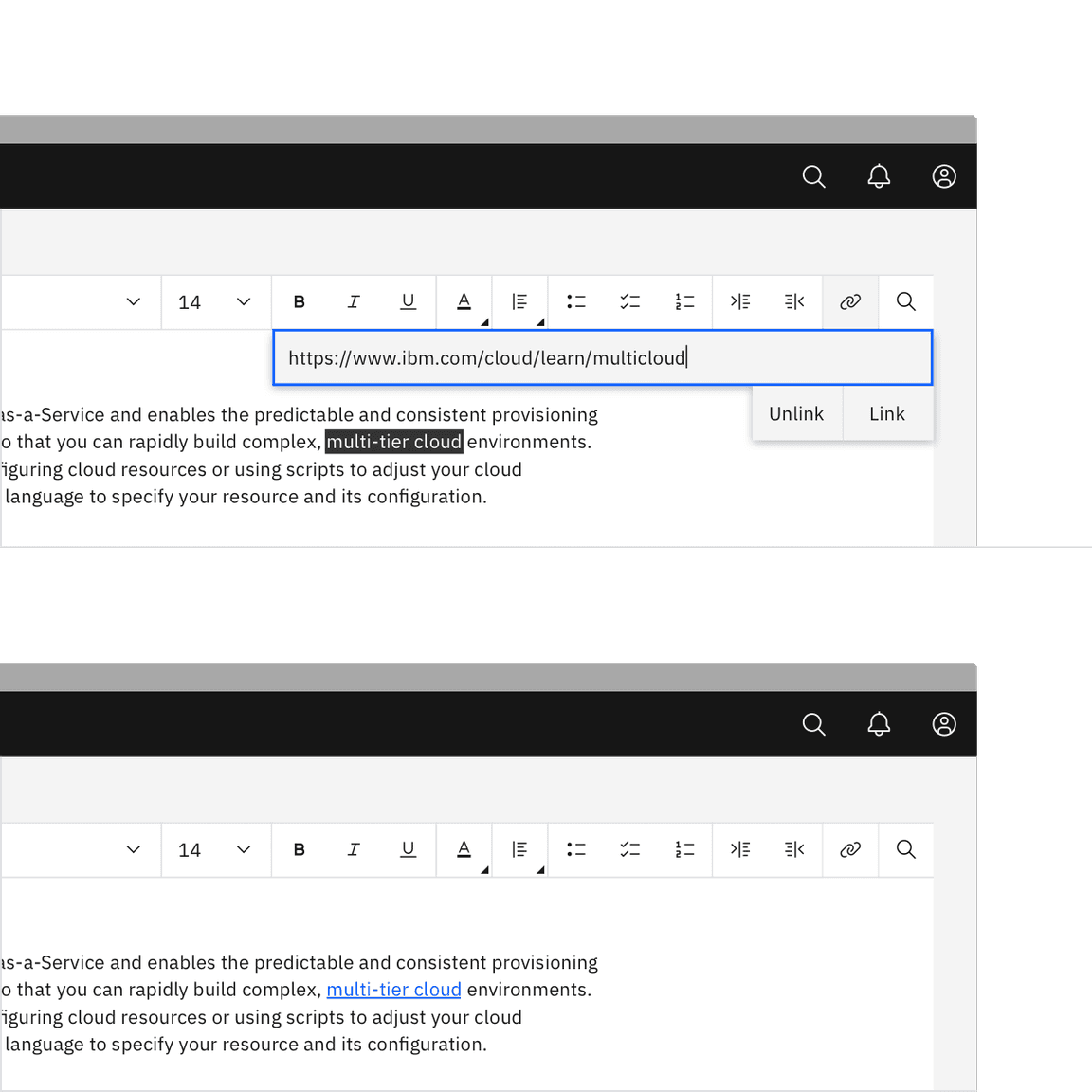

Enter the html link in the text field and then click the link button to embed the link. To exit the text field, click the close x icon or anywhere outside of the field. To reopen the link text field to edit or delete, highlight the inline link text with the cursor.

Embedding text links.

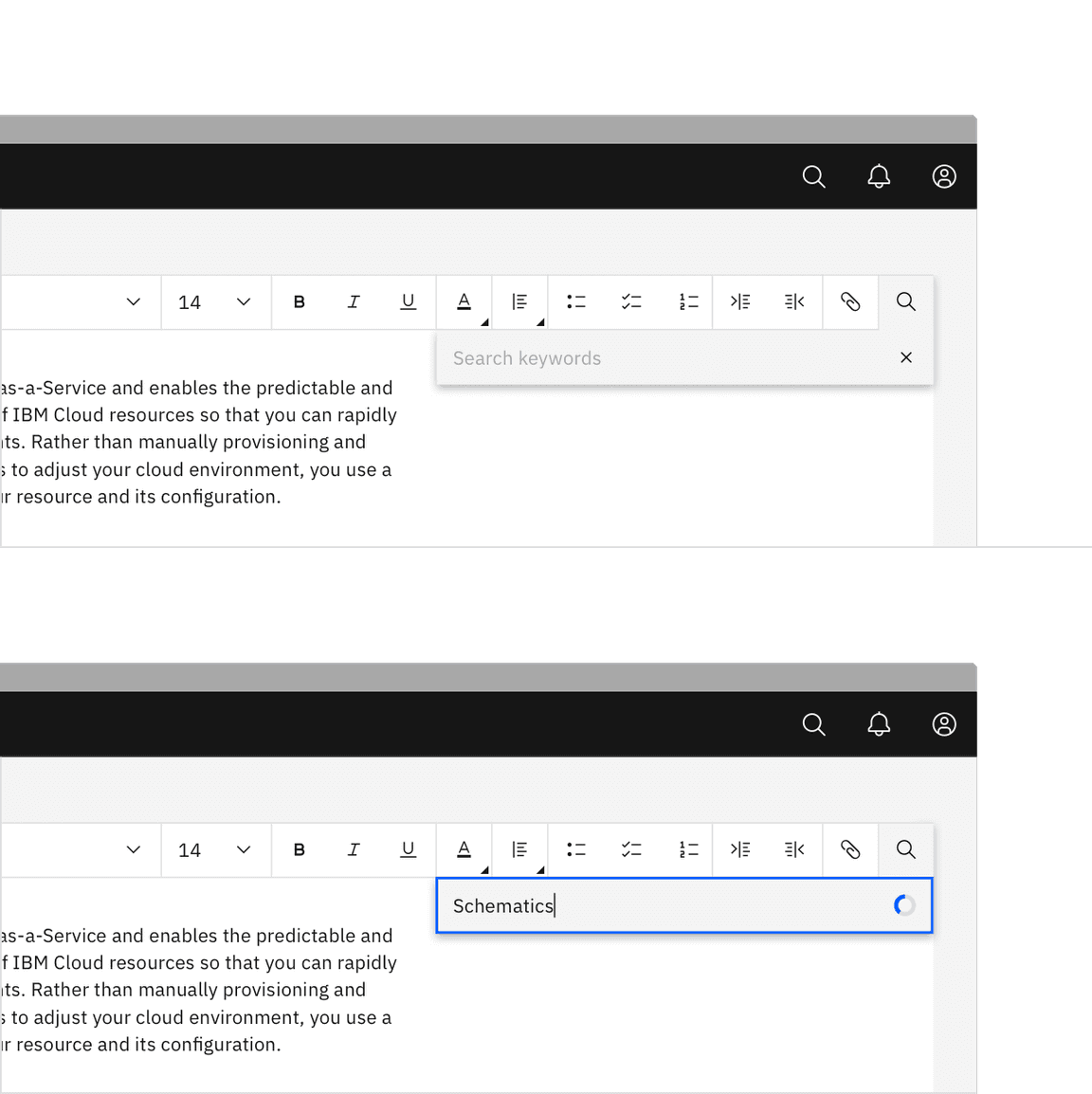

Keywords can be searched within the text area.

Searching text keywords.

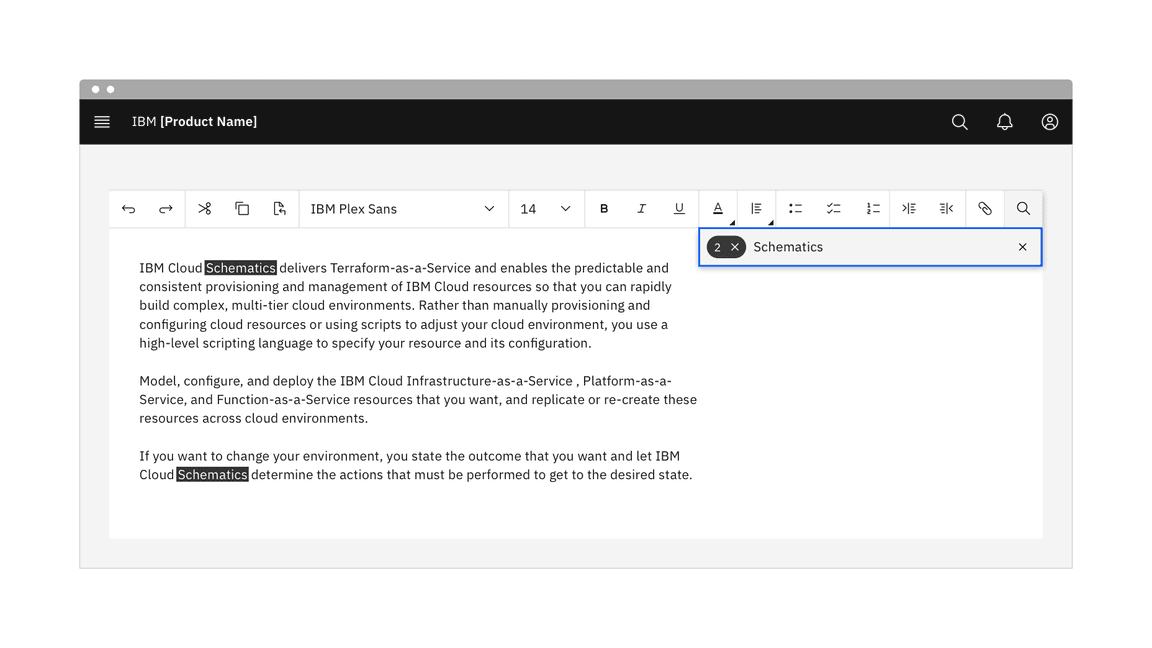

Matching search results are highlighted in the text area. The number of results found is displayed within a tag in the search bar. The user can clear the search by clicking the close x icon inside of the tag. To exit the search, click the close x icon in the search field or click anywhere outside of the search bar.

Search keyword matches within the text area.

Responsiveness

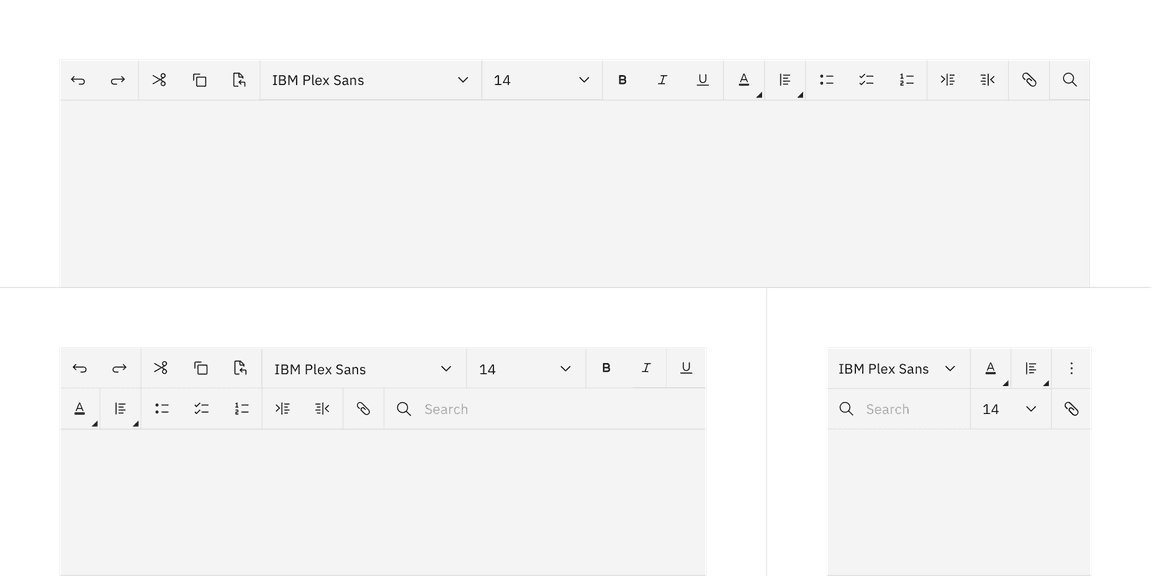

The text toolbar flexes in size to adapt to different breakpoints—max, xlg, lg, md, and sm.

Responsive versions of a text toolbar.
BreakpointUse case
max, xlgDisplays all controls and functionality in one row with the option to make the search field longer or shorter.
lgThe search field is truncated into a button or use an overflow menu to display collapsed controls.
mdCompresses the full text toolbar into two rows.
smA more compact version of “md” with collapsed controls in an overflow menu.

Overflow

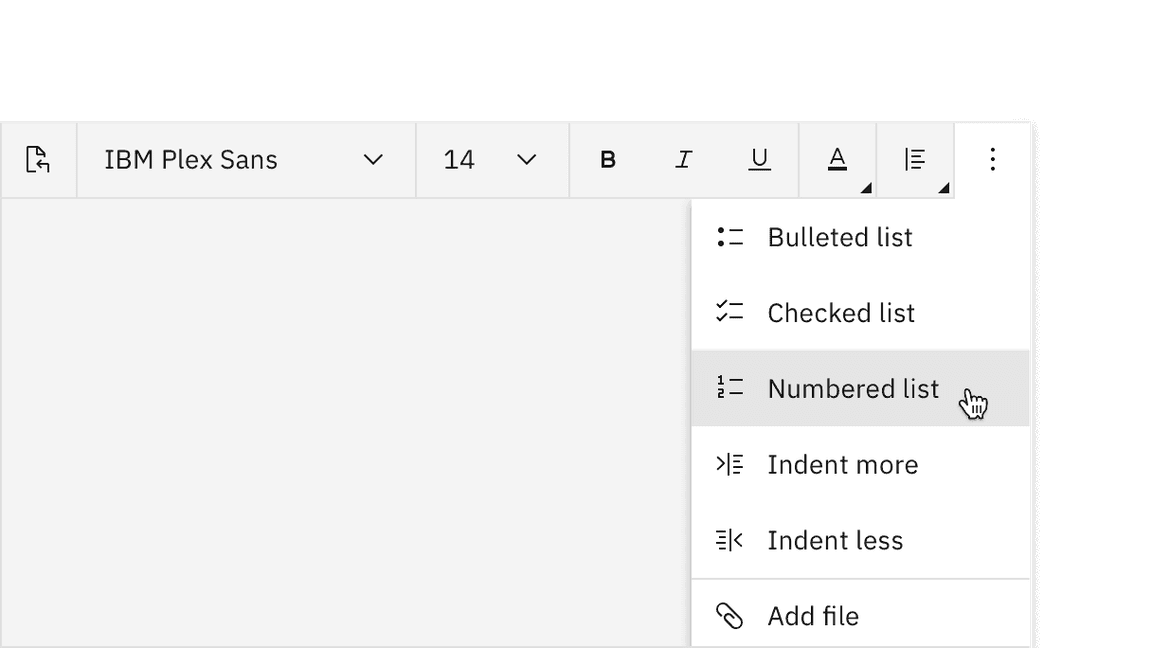

The overflow menu is used to display a list of multiple controls when horizontal space for the toolbar becomes restricted or when it is adapting to breakpoints.

Overflow menu options.

Saving

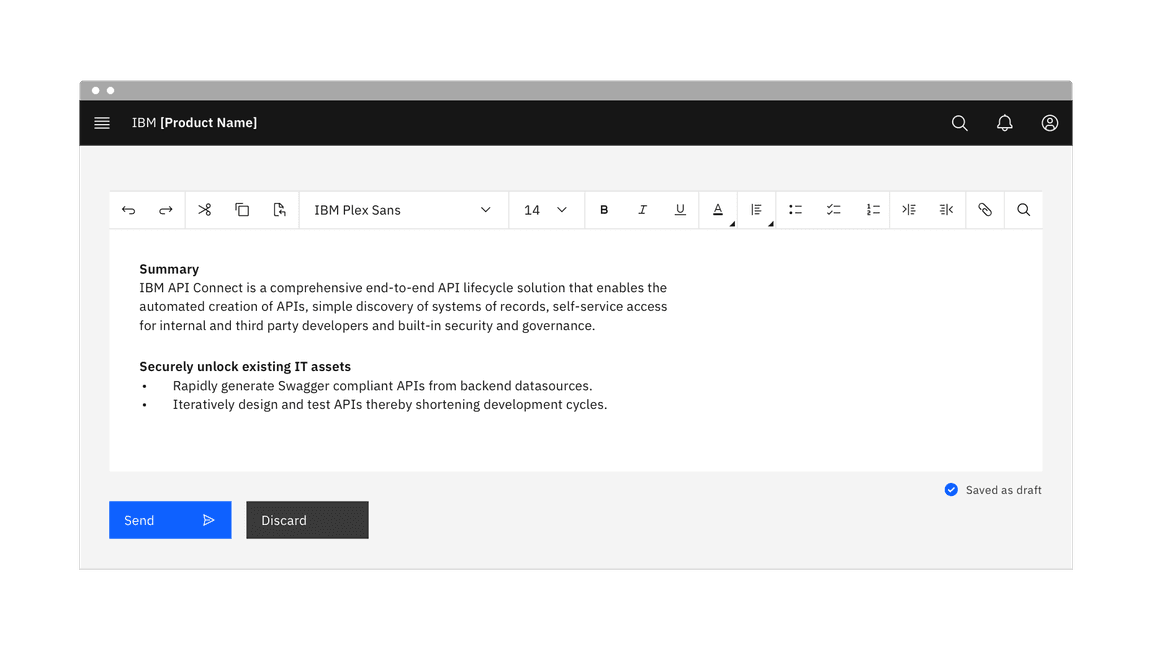

Text toolbars can be used to save or send text files. Text files can also be saved as drafts to be edited again at a later date. Drafts can be saved with an explicit “Save draft” button or it can autosave depending on the use case.

Saving a text file.

Accessibility

Tooltips

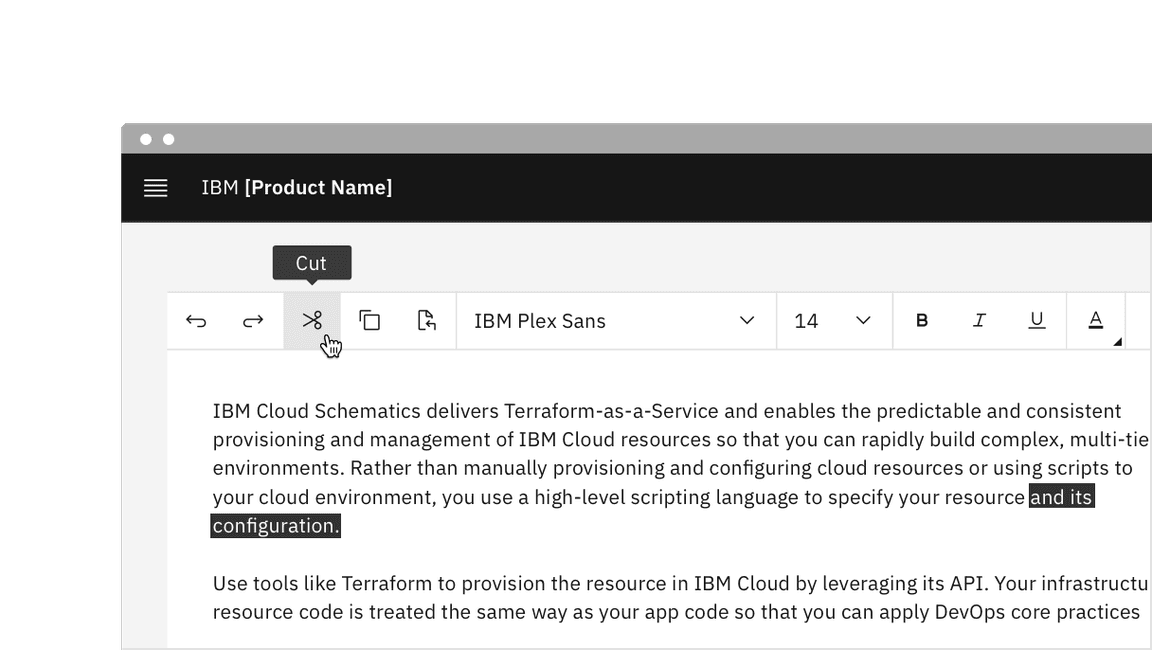

Buttons that complete an action upon click receive tooltips on hover and focus.

Tooltips on hover for buttons in a text toolbar.

Keyboard

Tab and Shift + Tab move focus in and out of the toolbar.

When focus moves into a toolbar:

  • If focus is moving into the toolbar for the first time, focus is set on the first control that is not disabled.
  • If the toolbar has previously contained focus, focus is optionally set on the control that last had focus. Otherwise, it is set on the first control that is not disabled.

Horizontal toolbars:

  • The Left Arrow moves focus to the previous control.
  • The Right Arrow moves focus to the next control.

Menus:

  • The Up Arrow and Down Arrow navigate to different options within a menu.
  • Open and close a menu by pressing Enter.

Screen readers

When a set of controls is visually presented as a group, the toolbar role can be used to communicate the presence and purpose of the grouping to screen reader users. Grouping controls into toolbars can also be an effective way of reducing the number of tab stops in the keyboard interface.

For further accessibility guidance of text toolbars, see WAI-ARIAs guidelines.
